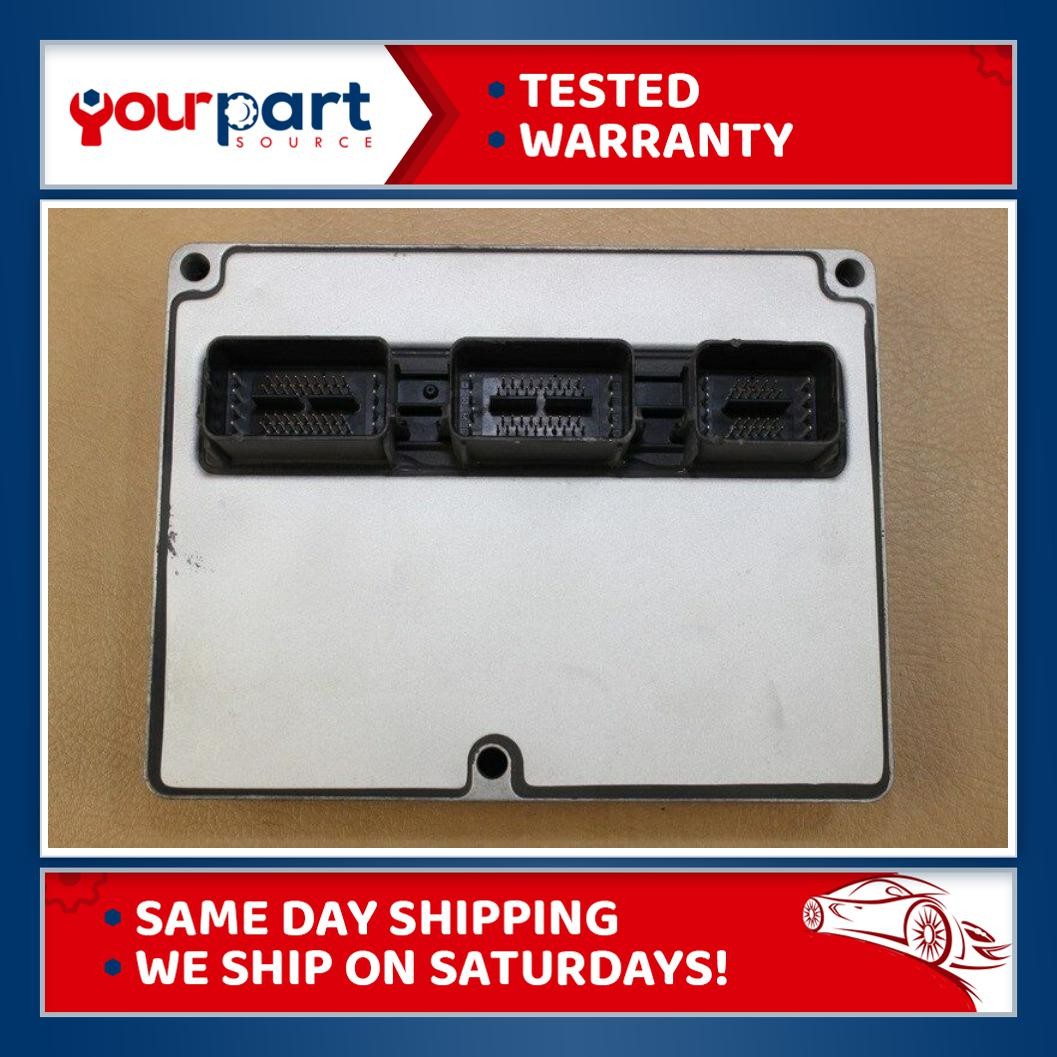

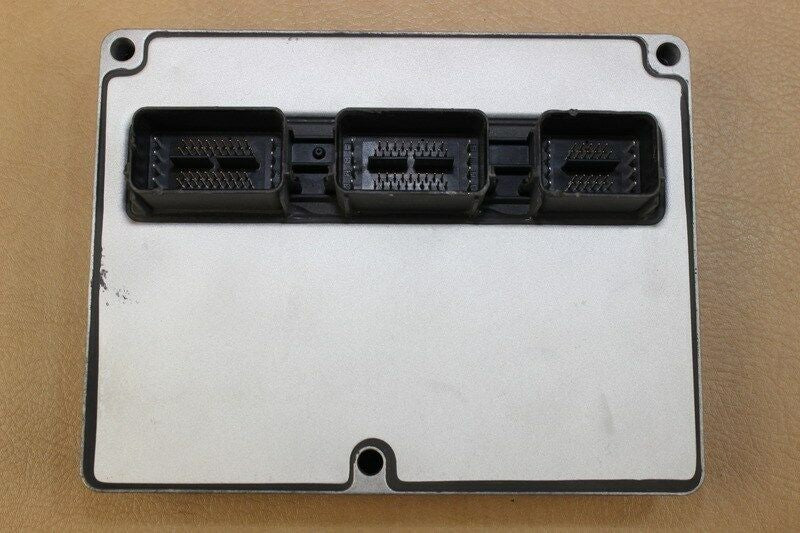

05-07 F-350 F-450 E-350 E450 6.0L ECU ECM ENGINE COMPUTER 6C3A-12A650-BZA TESTED

  • $174.99
    Unit price per


Product Description

Part Number

6C3A-12A650-BZA **The ecu you receive will fit your application if you have this part number. It may not have this part number on it (may have an update part # sticker on it) but it will be a match if your ecu has this number.**

Fitment/Interchange

This ecu will interchange or replace the following ecu part numbers for 2005 through 2007 Ford F-250 F-350 F-450 F-550 Super Duty 6.0L diesel truck models as well as 2005 through 2007 E-Series 6.0L Vans:

6C3A-12A650-BZA

6C3A-12A650-BZB

6C3A-12A650-CAA

6C3A-12A650-CAB

6C3A-12A650-BUA

6C3A-12A650-BVA

5U7A-12A650-BAA

5U7A-12A650-BBA

5U7A-12A650-BCA

5U7A-12A650-CKA

5U7A-12A650-CKB

5U7A-12A650-CKC

Tech Notes

    ECU has been tested with our state of the art vehicle simulator which tests over 25 circuits of the ECU! Some of those are listed below:
  • Reference Voltage Good!
  • ECU powered up and has communication!
  • ECU VGT, Fan Duty and EGR circuits test good!
  • ECU fuel pump/main relay tested good!
  • ECU injectors/coils tested good and much more!

Install Notes

  • Disconnect the negative terminal of the battery. Make sure the battery connector is not touching the battery post.
  • Disconnect and remove the module to be replaced.
  • Install and connect the replacement module.
  • Connect the negative terminal of the battery.
  • See "Programming / PATS Security" below for additional install instructions.

Programming / PATS Security

For Plug and Play you must do the following three steps:

Step 1: Match your part number per above fitment/interchange notes

Step 2: Program ecu to your VIN. You will need your local mechanic, Ford dealer or properly equipped locksmith to program your VIN into the ecu. Without this you will get a "no start" condition.

Step 3: If your vehicle has PATS security (Most Ford/Lincoln/Mercury's do) you must have your keys programmed. We recommend you have this done by your local locksmith. In most cases they will travel to your location and the process takes less than 30 minutes. No towing necessary and your local locksmith will be cheaper than a dealer. If your vehicle has PATS and is not programmed you will get a "no start".

Item Condition

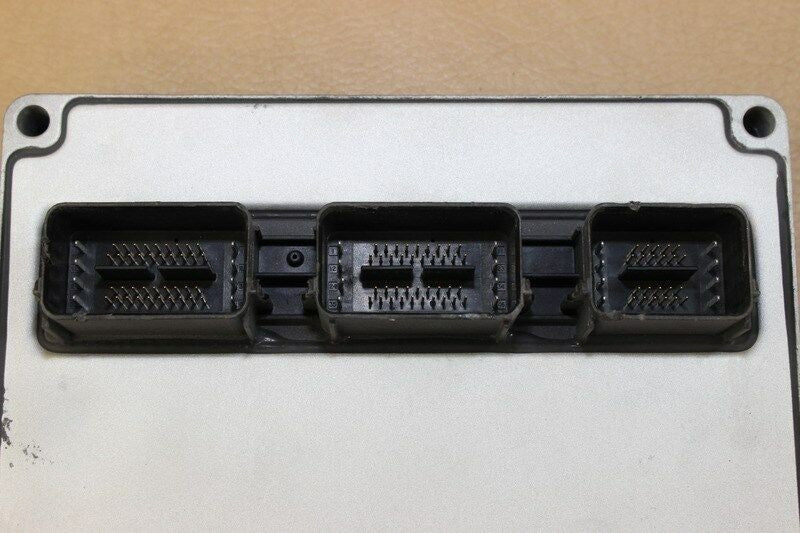

  • Pins perfect, none are broken or bent
  • Mounting points good

Warranty

This ECM comes with a 90 day warranty from the date of purchase. Please keep a copy of your purchase record which we will send with your item.
