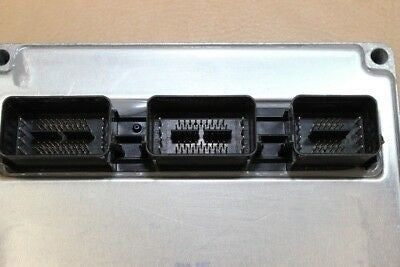

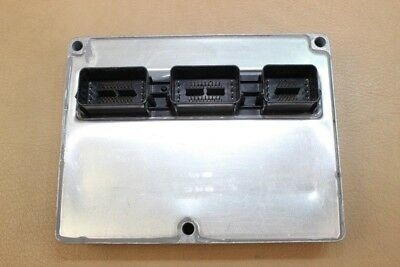

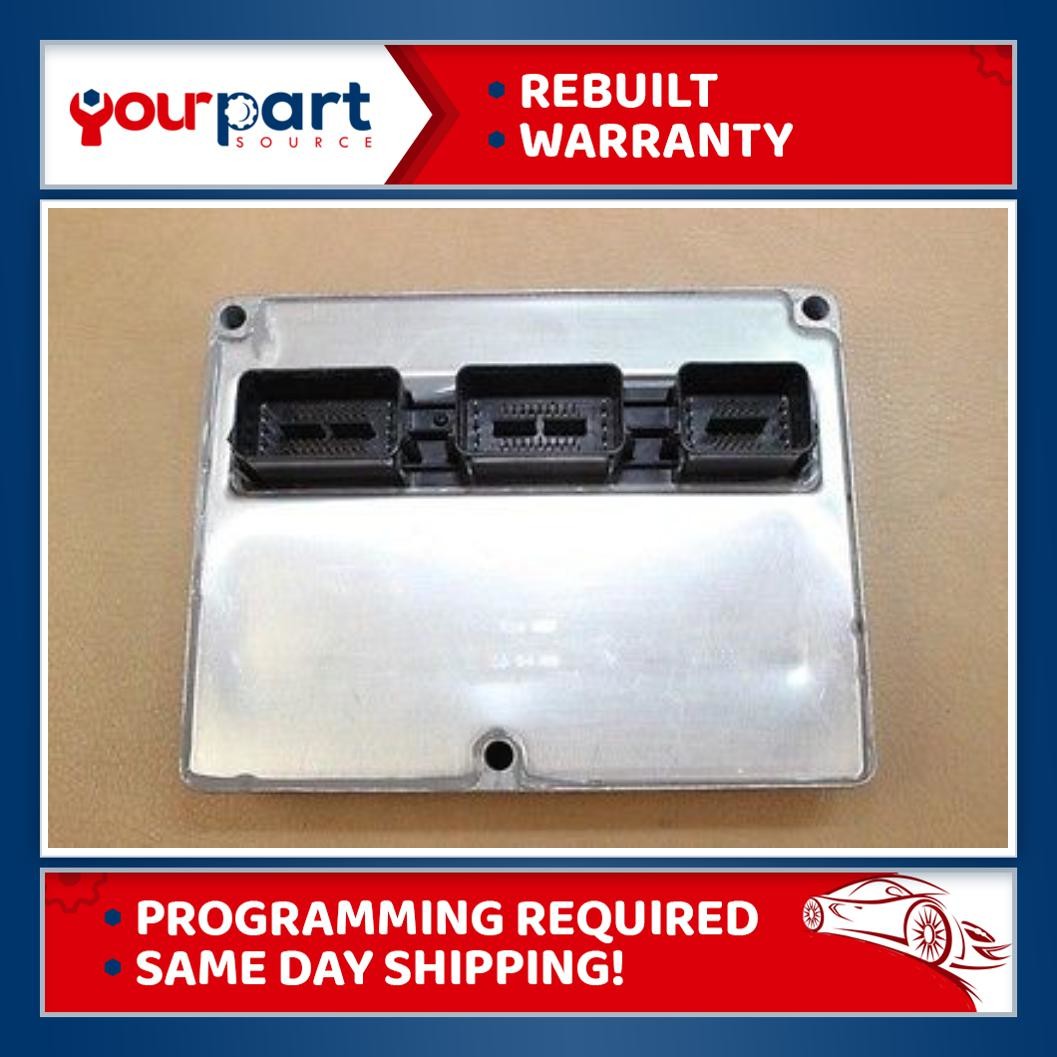

TESTED 04-05 F-350 E-350 EXCURSION 6.0L ECU ECM ENGINE COMPUTER 4U7A-12A650-EGG
TESTED 04-05 F-350 E-350 EXCURSION 6.0L ECU ECM ENGINE COMPUTER 4U7A-12A650-EGG
TESTED 04-05 F-350 E-350 EXCURSION 6.0L ECU ECM ENGINE COMPUTER 4U7A-12A650-EGG
TESTED 04-05 F-350 E-350 EXCURSION 6.0L ECU ECM ENGINE COMPUTER 4U7A-12A650-EGG
TESTED 04-05 F-350 E-350 EXCURSION 6.0L ECU ECM ENGINE COMPUTER 4U7A-12A650-EGG
TESTED 04-05 F-350 E-350 EXCURSION 6.0L ECU ECM ENGINE COMPUTER 4U7A-12A650-EGG
TESTED 04-05 F-350 E-350 EXCURSION 6.0L ECU ECM ENGINE COMPUTER 4U7A-12A650-EGG
TESTED 04-05 F-350 E-350 EXCURSION 6.0L ECU ECM ENGINE COMPUTER 4U7A-12A650-EGG
TESTED 04-05 F-350 E-350 EXCURSION 6.0L ECU ECM ENGINE COMPUTER 4U7A-12A650-EGG

TESTED 04-05 F-350 E-350 EXCURSION 6.0L ECU ECM ENGINE COMPUTER 4U7A-12A650-EGG

Product Description

Part Number

4U7A-12A650-EGG and DPU-252A - You must have both sets of numbers on your original ecu part number sticker.

Fitment/Interchange

This ecu will interchange or replace the following ecu part numbers for 2004 Ford F-250 F-350 F-450 F-550 Super Duty trucks, 2004 E-Series models and 2004 and 2005 Excursion 6.0L diesel models:

4U7A-12A650-EGG and DPU-252A

4U7A-12A650-BRA and DPU-252A

4U7A-12A650-EKA and DPU-252A

4U7A-12A650-ENA and DPU-252A

4U7A-12A650-EPA and DPU-252A

4U7A-12A650-EMF and DPU-252A

Tech Notes

    ECU has been tested with our state of the art vehicle simulator which tests over 25 circuits of the ECU! Some of those are listed below:
  • Reference voltage and EGR tested good!
  • ECU VGT and fan duty tested good!
  • ECU powered up and has communication!
  • ECU fuel pump/main relay tested good!
  • ECU injectors/coils tested good and much more!

Install Notes

  • Disconnect the negative terminal of the battery. Make sure the battery connector is not touching the battery post.
  • Disconnect and remove the module to be replaced.
  • Install and connect the replacement module.
  • Connect the negative terminal of the battery.
  • See "Programming / PATS Security" below for additional install instructions.

Programming / PATS Security

For Plug and Play you must do the following three steps:

Step 1: Match your part number per above fitment/interchange notes

Step 2: Program the ecu to your VIN. You will need your local mechanic, Ford dealer or properly equipped Locksmith to program your VIN into the ecu. Without this you will get a "no start" condition.

Step 3: If your vehicle has PATS security (Most Ford/Lincoln/Mercury's do) you must have your keys programmed. We recommend you have this done by your local locksmith. In most cases they will travel to your location and the process takes less than 30 minutes. No towing necessary and your local locksmith will be cheaper than a dealer. If your vehicle has PATS and is not programmed you will get a "no start".

Item Condition

  • Pins perfect, none are broken or bent
  • Mounting points good
  • Connectors may some small chips in the plastic but all of the lock tabs are in place

Warranty

This ECM comes with a 90 day warranty from the date of purchase. Please keep a copy of your purchase record which we will send with your item.
