REMAN 01-02 CHEVY S10 BLAZER SONOMA ABS ANTI-LOCK BRAKE MODULE EBCM Z65 16 PIN

  • $184.99
    Unit price per


Product Description

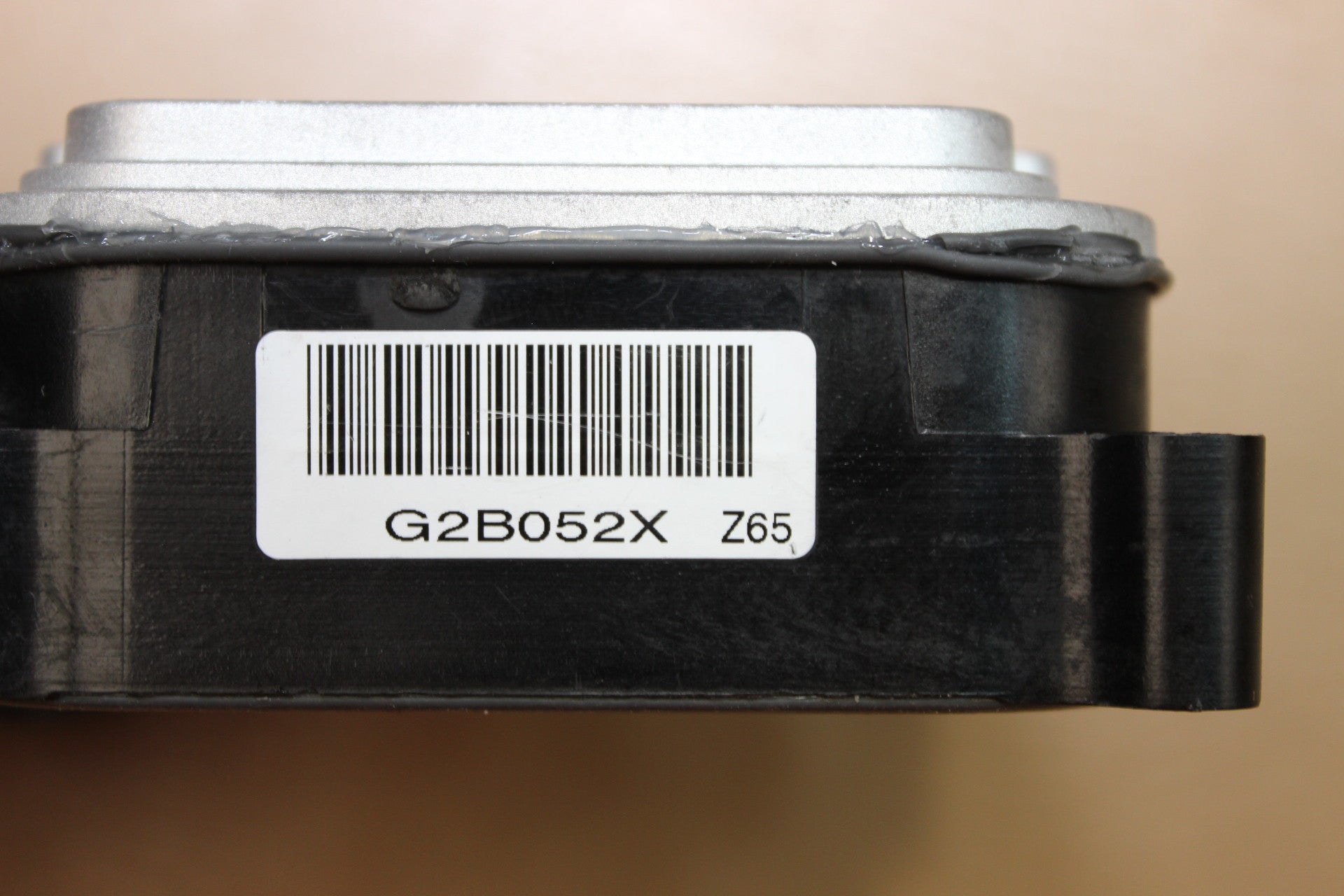

Part Number

    Z65 Series 16 pin

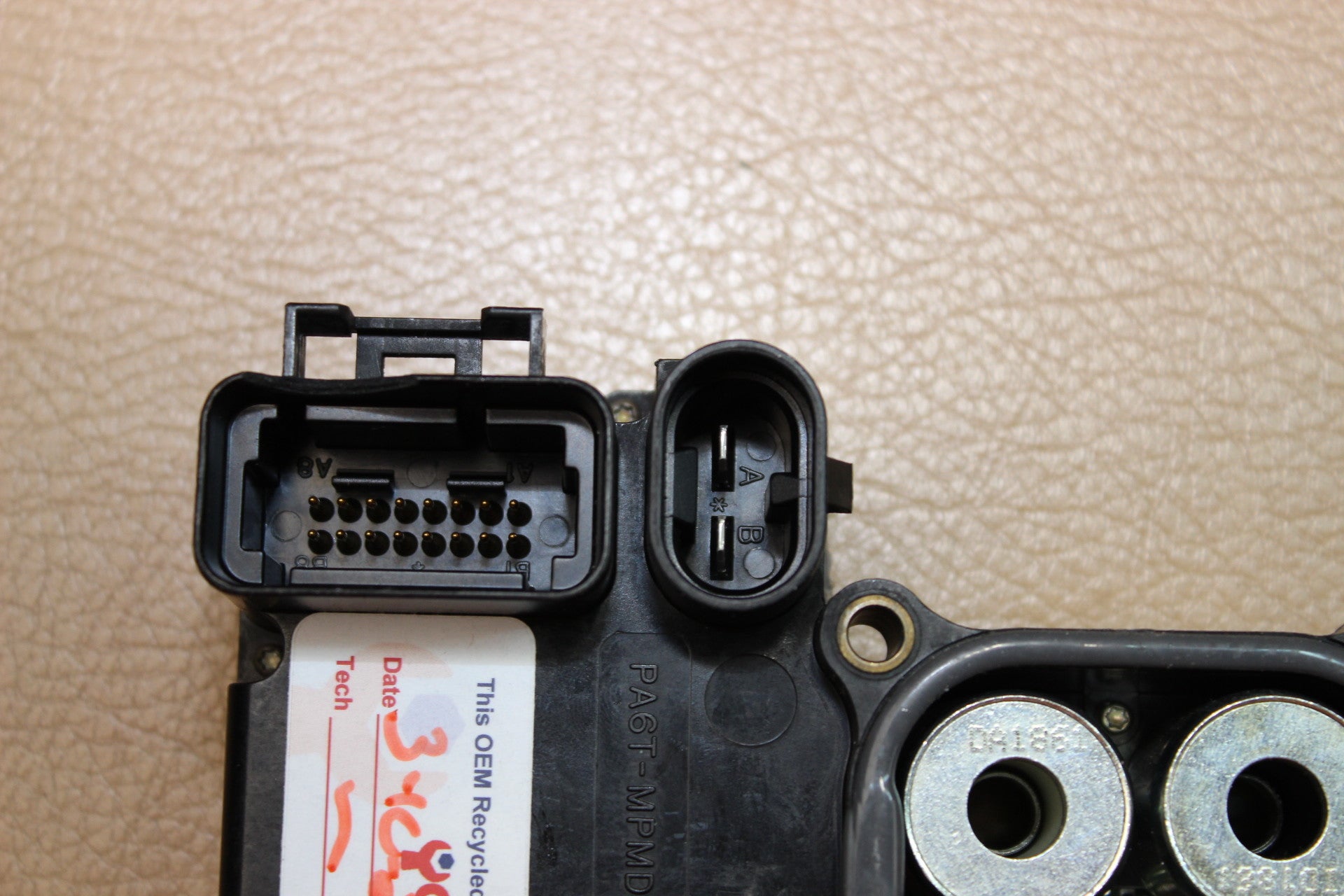

  • This module has 16 pins in the main connector, YOU MUST MATCH THIS!
  • If your ABS module has a part number, you must match that.
  • EBCM is free and clear of rust or corrosion.

Fitment

    You must match your module style and connections. This module has 16 pins in the main connector. If you do not match this you more than likely will get a no communication situation and damage the module and void your warranty.
  • Prior to purchase please verify your wheel speed sensors are good or have been replaced and that your wiring harness has no breaks as both of these situations can set trouble codes.

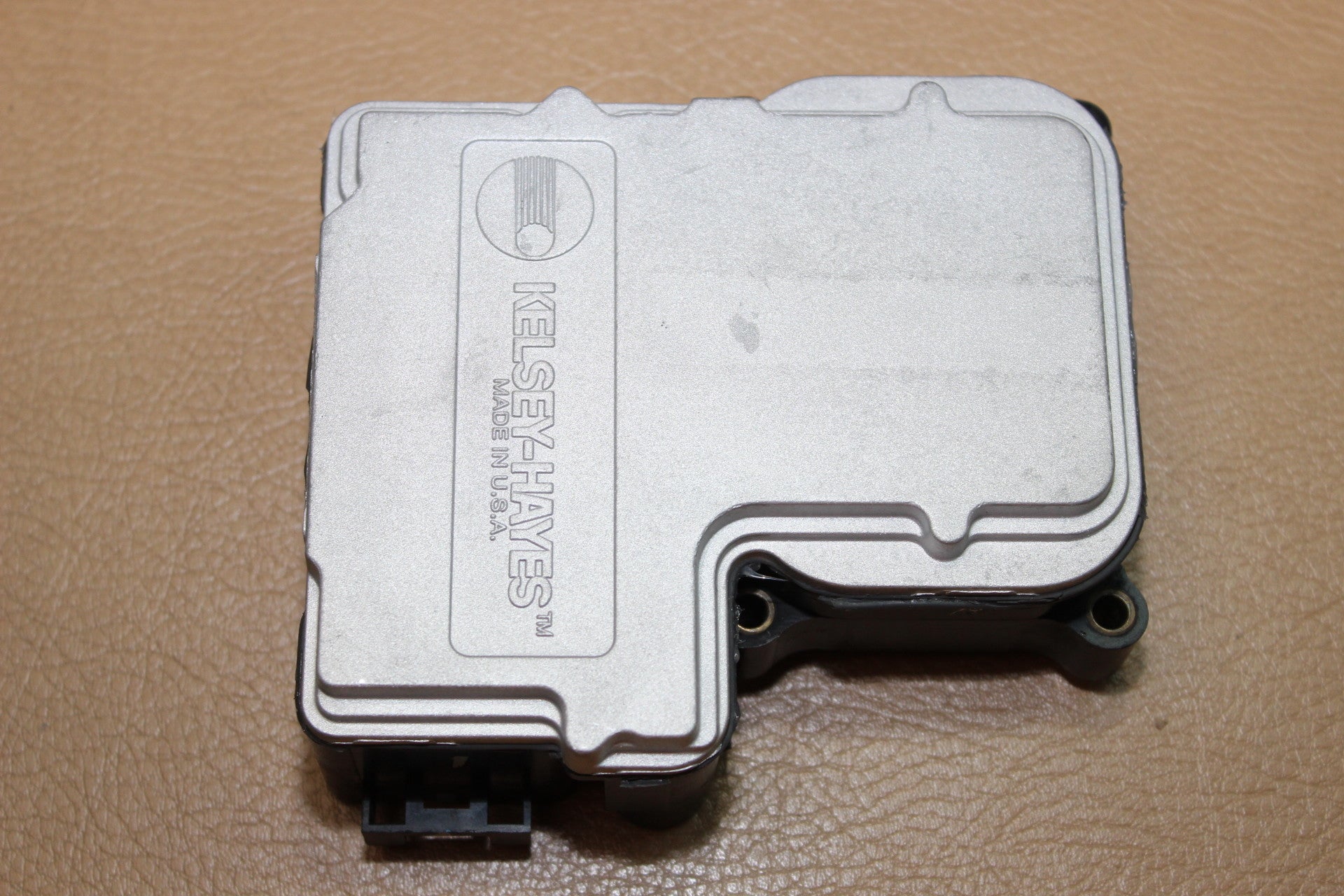

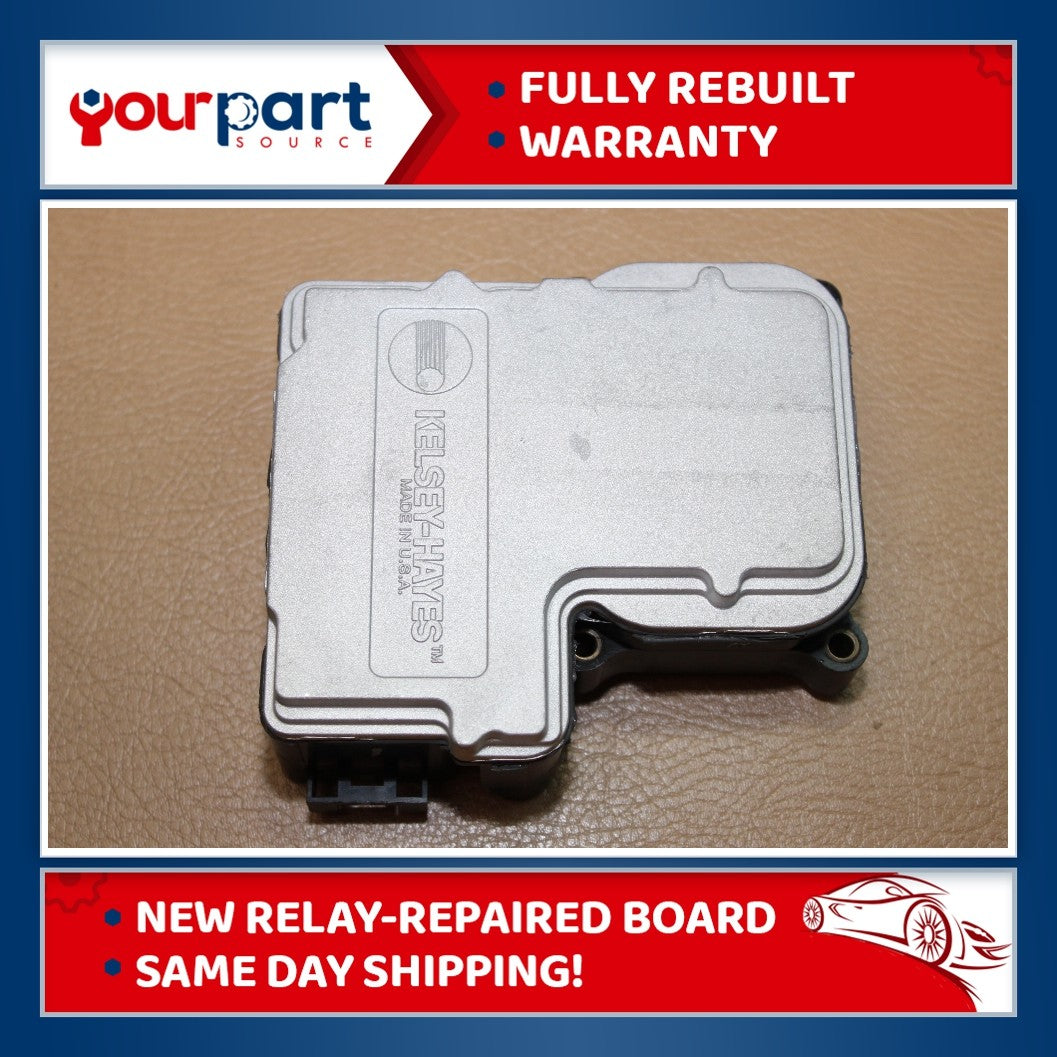

  • Comes as pictured. Module only, pump not included.
  • If you ABS module has a part number, you must match that.

Tech Notes

    Module has been repaired and tested by our experienced technical staff! Some of those tests are listed below:
  • Solder joints that typically fail have been repaired

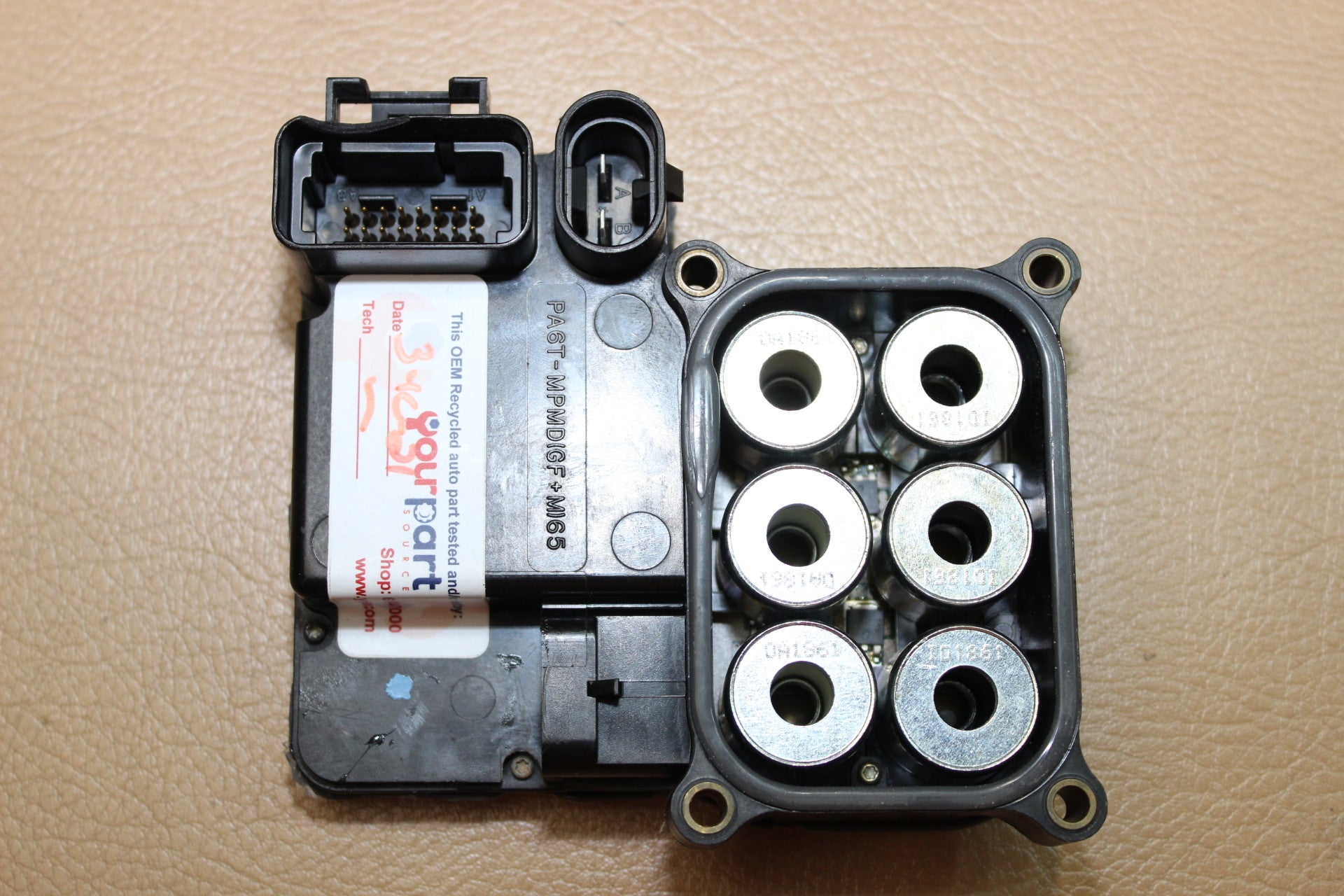

  • 6 ABS inductors test good
  • Relay which typically fails has been replaced

Install Notes

    Please follow below for proper installation of module:
  • Disconnect the negative terminal of the battery. Make sure the battery connector is not touching the battery post.
  • Disconnect and remove module to be replaced. Make sure connector harness is clean and there are no broken wires.
  • If you module doesn't have 16 pins in the main connector, stop and contact us. This module will not replace units with 11 pins in the main connector.
  • Install and connect the replacement module.
  • Connect the negative terminal of the battery.
  • After install clear Diagnostic Trouble Codes and drive vehicle for 10-15 miles.
  • Clear codes again and no codes should reappear.

Optional Core Refund

If you would like to send your ABS module back to us for a $10 refund, please let us in the "Notes to Seller" box and we will include a prepaid return label with your order. It's that simple! Again, this is optional and you are not obligated to send your ABS module back to us.

We will not be able to issue a core refund for units that have been completely destroyed by rust.

Warranty

This EBCM carries a 6 Month warranty from the date of purchase. Please keep a copy of your sales record which we will send with your order.
