09-10 EXPLORER MOUNTAINEER 4.0L ECU PCM ENGINE COMPUTER 9L2A-12A650-ED TESTED

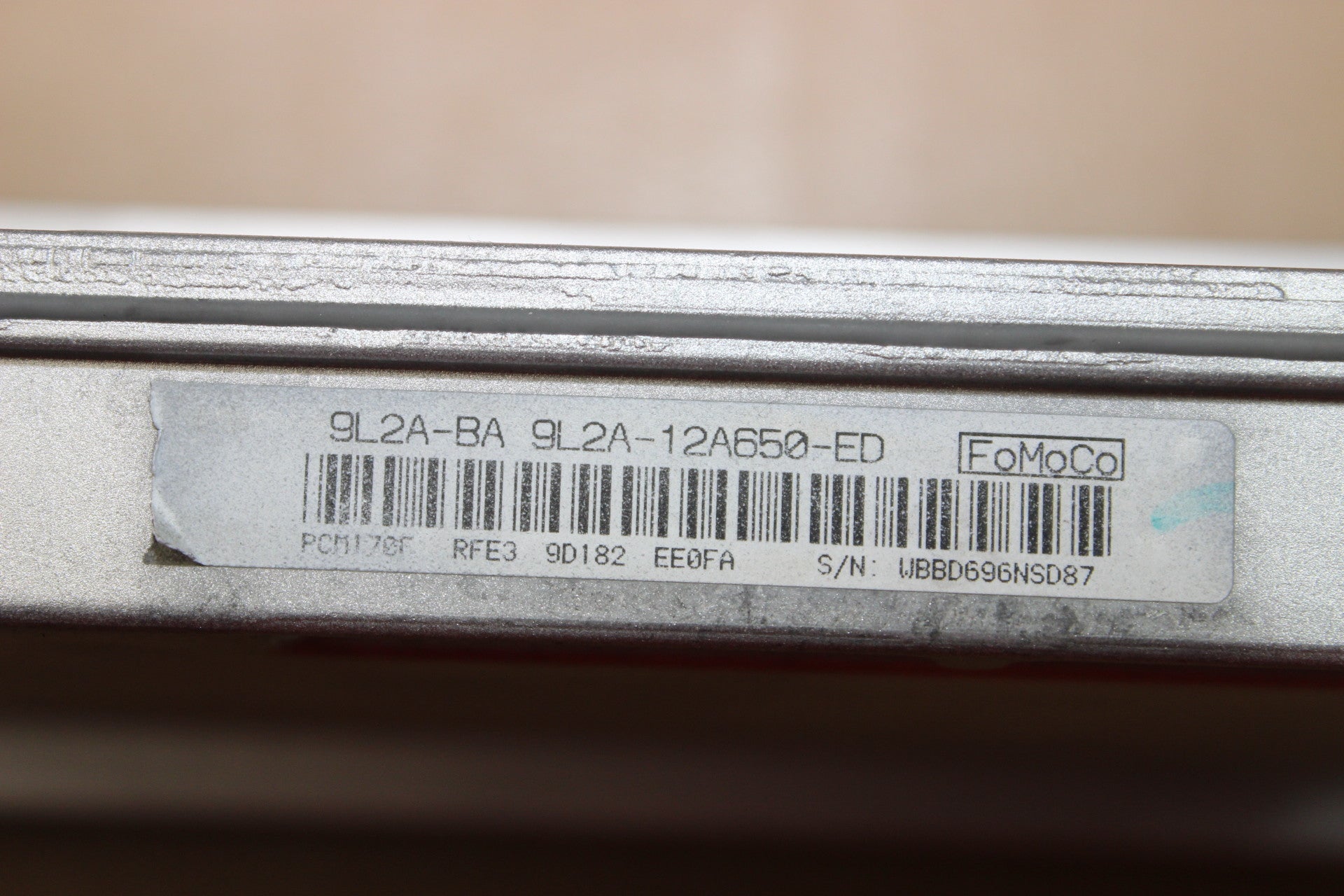

9L2A-12A650-ED

ECU will arrive with updated part number sticker having been programmed with latest Ford Software Updates!

This ecu will interchange or replace the following ecu part numbers on 2009 EXPLORER or MOUNTAINEER 4.6L models :

9L2A-12A650-ED

9L2A-12A650-EC

9L2A-12A650-EB

ECU has been "rebuilt" then tested with our state of the art vehicle simulator which tests over 25 circuits of the ECU! Some of those are listed below:
• No O2 sensor issues, No EGR, No P0443 issues! Those issues have been rebuilt!
• Reference Voltage Good!
• ECU has TCU and a/c communication!
• ECU powered up and has communication!
• ECU fuel pump/main relay tested good!
• ECU injectors/coils tested good and much more!

• Disconnect the negative terminal of the battery. Make sure the battery connector is not touching the battery post.
• Disconnect and remove the module to be replaced.
• Install and connect the replacement module.
• Connect the negative terminal of the battery.
• See "Programming / PATS Security" below for additional install instructions.

For Plug and Play you must have **TWO CHIPPED NON-CLONED KEYS** and follow the below instructions. If you have the two original keys with the Ford logo on them, you are ready to complete the following instructions:

Step 1: Match your part number per above fitment guide

Step 2: Program ecu to your VIN. We provide free programming for our customers. During checkout you must list your VIN and mileage in the "Notes to Seller" for us to program the ECM. If we do not hear from you through the order notes or a message through eBay we will assume your mechanic is performing the programming (no problem at all) and we will ship the ECM out the next business day as directed by eBay.

Step 3: If your vehicle has PATS security (Most Ford/Lincoln/Mercury's do) you must have your keys programmed. We recommend you have this done by your local locksmith. In most cases they will travel to your location and the process takes less than 30 minutes. No towing necessary and your local locksmith will be cheaper than a dealer.

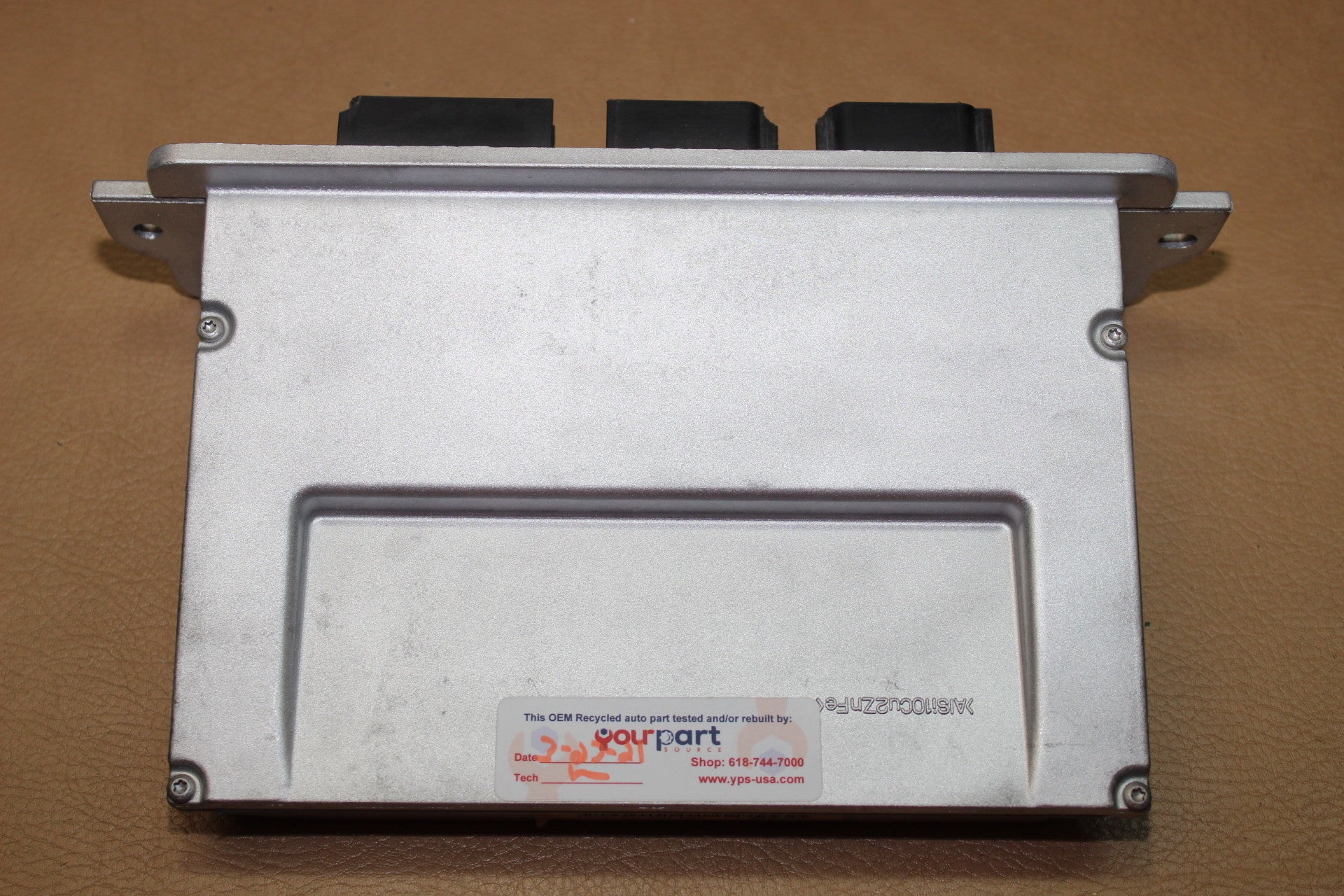

• Mounting points are all open and intact
• Pins perfect, none are broken or bent
• Lock tabs in place

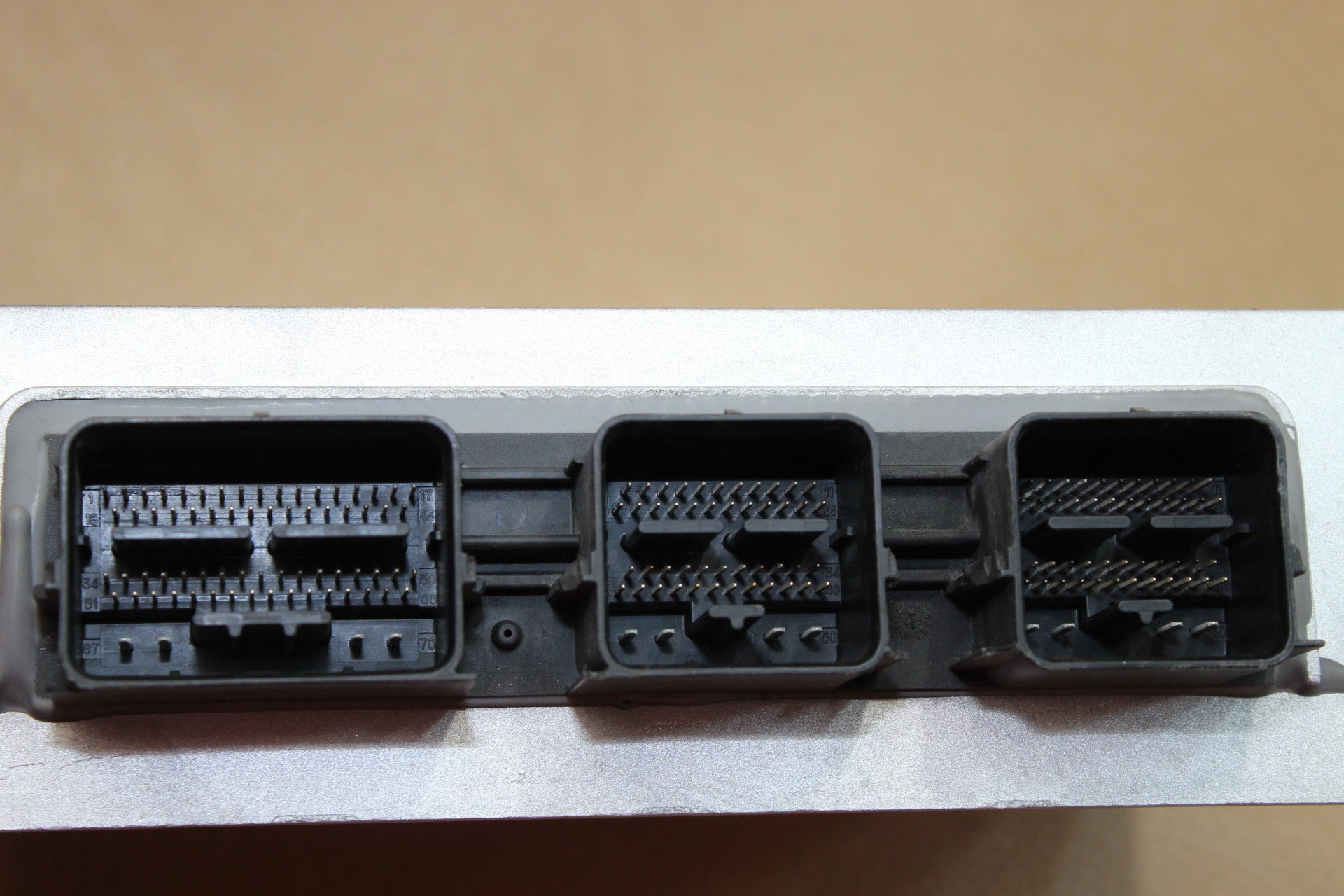

• Connector plastic may have minor chip but pins, guides and lock tabs are in place.

A $100 core deposit is required at the time of purchase in the form of the $100 shipping cost. We will include a prepaid return label with your order for you to send back your original climate control head core. Once we recieve the item we will issue you a $100 refund. We will issue partial core refunds if your original unit has been damaged beyond repair due to water damage, physical damage or a previous repair attempt.

This ECM comes with a 90 day warranty from the date of purchase. Please keep a copy of your purchase record which we will send with your item.
