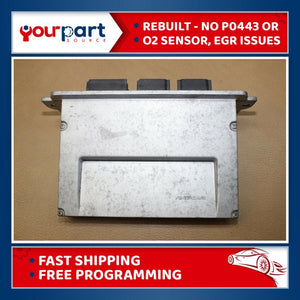

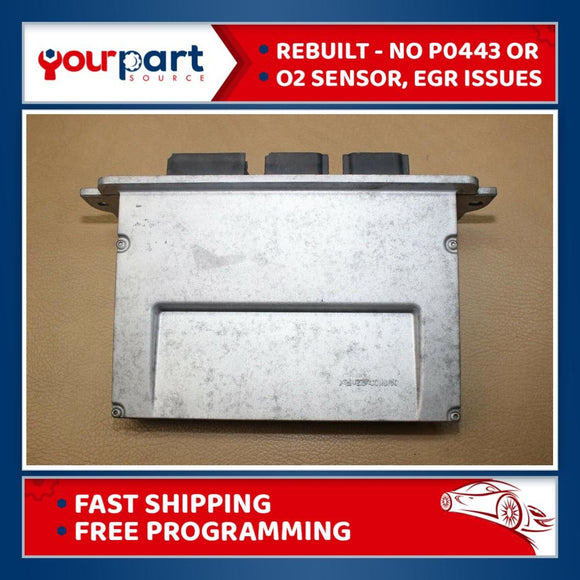

05-06 FORD E-350 E-450 6.8L ECU PCM ENGINE COMPUTER 6C2A-12A650-NB VK2-C3692

  • $669.99
    Unit price per


Product Description

Part Number

6C2A-12A650-NB  & VK2-C3692 < You must have both of these on your part number sticker!

**PLEASE SUPPLY YOUR VIN AT CHECKOUT SO WE CAN PROPERLY PROGRAM THE ECU.**

ECU will arrive with updated part number sticker having been programmed with latest Ford Software Updates!

Fitment/Interchange

This ecu will interchange or replace the following ecu part numbers on 2005 and 2006 E-350 E-450 E-550 6.8L vans : (You must have VK2-C3692 on your part number sticker as well as one of the below.)

5U7A-12A650-EVA
5U7A-12A650-EVB
5U7A-12A650-EXA
5U7A-12A650-EXB
5U7A-12A650-EYA
5U7A-12A650-EYB
5U7A-12A650-EZA
5U7A-12A650-EZB
5U7A-12A650-FAA
5U7A-12A650-FAB
5U7A-12A650-FBA
5U7A-12A650-FBB
6C2A-12A650-AEA
6C2A-12A650-AEB
6C2A-12A650-AEC
6C2A-12A650-NA
6C2A-12A650-NB
6C2A-12A650-NC
6C2A-12A650-PA
6C2A-12A650-PB
6C2A-12A650-PC

Tech Notes

    ECU has been rebuilt then tested with our state of the art vehicle simulator which tests over 25 circuits of the ECU! Some of those are listed below:
  • Issues that cause O2 sensor, EGR, P0443 issues has been rebuilt.
  • Reference Voltage Good!
  • ECU has TCU communication and a/c compressor signal!
  • ECU powered up and has communication!
  • ECU fuel pump/main relay tested good!
  • ECU injectors/coils tested good and much more!

Install Notes

  • Disconnect the negative terminal of the battery. Make sure the battery connector is not touching the battery post.
  • Disconnect and remove the module to be replaced.
  • Install and connect the replacement module.
  • Connect the negative terminal of the battery.
  • See below for *PLUG and PLAY* details.

Programming / Plug and Play

For Plug and Play you must have **TWO NON-CHIPPED KEYS** and follow the below instructions. If you have the two original keys with the Ford logo on them, you are ready to complete the following instructions:

Step 1: Purchase the correct ecu for your application - see fitment above.

Step 2: Update and Program ecu to your VIN. We provide free programming for our customers. During checkout you must list your VIN and mileage in the "Notes to Seller" for us to program the ECM. If we do not hear from you through the order notes or a message through eBay we will assume your mechanic is performing the programming (no problem at all) and we will ship the ECM out the next business day as directed by eBay. **ECU is not plug and play without programming**

*** If for any reason you believe your vehicle has Ford PATS Security please email us prior to purchase. ***

Item Condition

  • Mounting points are all open and intact
  • Pins perfect, none are broken or bent
  • Lock tabs in place
  • Connector plastic may have minor chip but pins, guides and lock tabs are in place.

Warranty

This ECM comes with a 90 day warranty from the date of purchase. Please keep a copy of your purchase record which we will send with your item.
