03-04 LINCOLN LS 3.0L ECU ECM PCM ENGINE COMPUTER 4W4A-12A650-BYB HBO-350 PROBADA

  • $214.99
    Unit price per


Product Description

Part Number

4W4A-12A650-BYA & HBO-331 - YOUR PART NUMBER STICKER MUST HAVE BOTH OF THESE ON IT!

ECU will arrive with updated part number sticker having been programmed with latest Ford Software Updates! (PATS programming will still be required after install)

Fitment/Interchange

This ecu will interchange or replace the following ecu part numbers for 2003 and 2004 Lincoln LS V6 model:

4W4A-12A650-BA + HBO-350

4W4A-12A650-BYB + HBO-350

4W4A-12A650-BZA + HBO-350

4W4A-12A650-BZB + HBO-350

4W4A-12A650-GA + HBO-350

4U7A-12A650-FAA + HBO-350

4U7A-12A650-FBA + HBO-350

Tech Notes

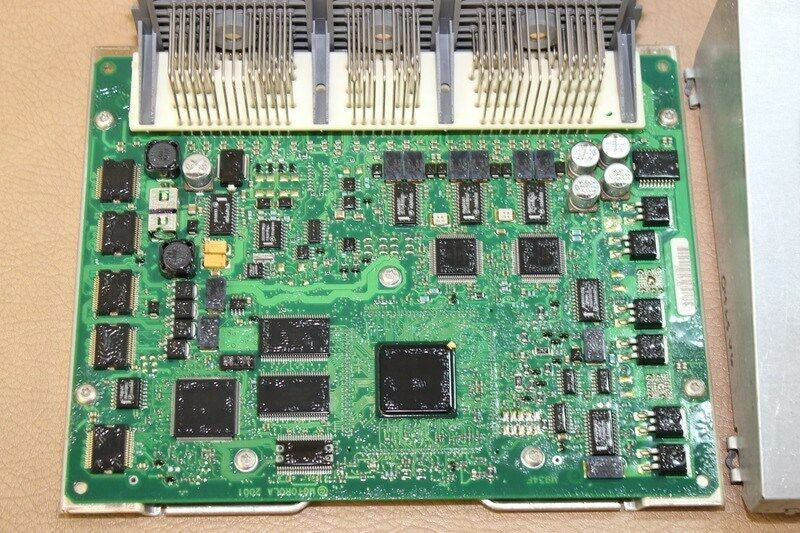

    ECU has been tested with our state of the art vehicle simulator which tests over 25 circuits of the ECU! Some of those are listed below:
  • Reference Voltage Good!
  • ECU has transmission communication
  • ECU powered up and has communication!
  • ECU fuel pump/mail relay tested good!
  • ECU injectors/coils tested good and much more!

Install Notes

  • Disconnect the negative terminal of the battery. Make sure the battery connector is not touching the battery post.
  • Disconnect and remove the module to be replaced.
  • Install and connect the replacement module.
  • Connect the negative terminal of the battery.
  • See "Programming / PATS Security" below for additional install instructions.

Programming / PATS Security

For Plug and Play you must have **TWO CHIPPED NON-CLONED KEYS** and follow the below instructions. If you have the two original keys with the Ford logo on them, you are ready to complete the following instructions:

Step 1: Match your part number per above fitment/interchange notes

Step 2: Program ecu to your VIN. We provide free programming for our customers. During checkout you must list your VIN and mileage in the "Notes to Seller" for us to program the ECM. If we do not hear from you through the order notes or a message through eBay we will assume your mechanic is performing the programming (no problem at all) and we will ship the ECM out the next business day as directed by eBay.

Step 3: If your vehicle has PATS security (Most Ford/Lincoln/Mercury's do) you must have your keys programmed. We recommend you have this done by your local locksmith. In most cases they will travel to your location and the process takes less than 30 minutes. No towing necessary and your local locksmith will be cheaper than a dealer.

Item Condition

  • Pins perfect, none are broken or bent
  • Mounting points good

Warranty

This ECM comes with a 90 day warranty from the date of purchase. Please keep a copy of your purchase record which we will send with your item.
