2009 FORD F-150 4.6L ECU ECM PCM ENGINE COMPUTER MODULE 9L3A-12A650-BGC TESTED
2009 FORD F-150 4.6L ECU ECM PCM ENGINE COMPUTER MODULE 9L3A-12A650-BGC TESTED
2009 FORD F-150 4.6L ECU ECM PCM ENGINE COMPUTER MODULE 9L3A-12A650-BGC TESTED
2009 FORD F-150 4.6L ECU ECM PCM ENGINE COMPUTER MODULE 9L3A-12A650-BGC TESTED
2009 FORD F-150 4.6L ECU ECM PCM ENGINE COMPUTER MODULE 9L3A-12A650-BGC TESTED
2009 FORD F-150 4.6L ECU ECM PCM ENGINE COMPUTER MODULE 9L3A-12A650-BGC TESTED
2009 FORD F-150 4.6L ECU ECM PCM ENGINE COMPUTER MODULE 9L3A-12A650-BGC TESTED
2009 FORD F-150 4.6L ECU ECM PCM ENGINE COMPUTER MODULE 9L3A-12A650-BGC TESTED
2009 FORD F-150 4.6L ECU ECM PCM ENGINE COMPUTER MODULE 9L3A-12A650-BGC TESTED
2009 FORD F-150 4.6L ECU ECM PCM ENGINE COMPUTER MODULE 9L3A-12A650-BGC TESTED

2009 FORD F-150 4.6L ECU ECM PCM ENGINE COMPUTER MODULE 9L3A-12A650-BGC TESTED

Product Description

Part Number

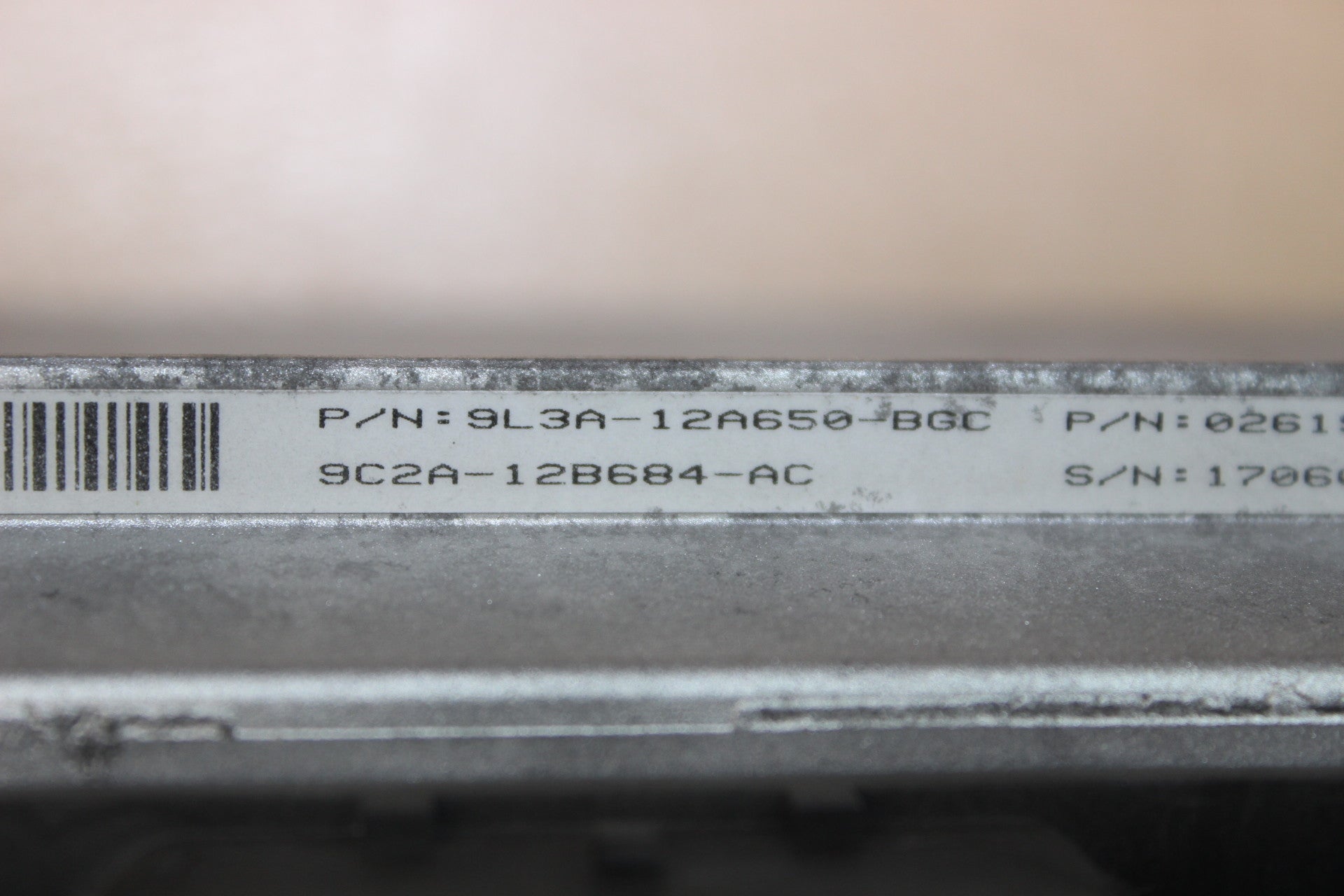

9L3A-12A650-BGC - See part number interchange below.

Fitment/Interchange

This ecu will interchange or replace the following ecu part numbers on 2009 4.6L F-Series truck models: (You must also have along with one of the below on your ecu part #.)

9L3A-12A650-BCB

9L3A-12A650-BCC

9L3A-12A650-BDA

9L3A-12A650-BDB

9L3A-12A650-BDC

9L3A-12A650-BEB

9L3A-12A650-BEC

9L3A-12A650-BFB

9L3A-12A650-BFC

9L3A-12A650-BGB

9L3A-12A650-BGC

9L3A-12A650-BHB

9L3A-12A650-BJD

9L3A-12A650-BKD

9L3A-12A650-BLB

9L3A-12A650-BLD

9L3A-12A650-BMB

9L3A-12A650-BMD

Tech Notes

    ECU has been tested with our state of the art vehicle simulator which tests over 25 circuits of the ECU! Some of those are listed below:
  • Reference Voltage Good!
  • ECU powered up and has communication!
  • ECU fuel pump/main relay tested good!
  • ECU injectors/coils tested good and much more!

Install Notes

  • Disconnect the negative terminal of the battery. Make sure the battery connector is not touching the battery post.
  • Disconnect and remove the module to be replaced.
  • Install and connect the replacement module.
  • Connect the negative terminal of the battery.
  • See "Programming / PATS Security" below for additional install instructions.

Programming / PATS Security

For Plug and Play you must do the following three steps:

Step 1: Match your part number per above fitment/interchange notes

Step 2: Program ecu to your VIN. You will need your local mechanic, Ford dealer or properly equipped Locksmith to program your VIN into the ecu. Without this you will get a "no start" condition.

Step 3: If your vehicle has PATS security (Most Ford/Lincoln/Mercury's do) you must have your keys programmed. We recommend you have this done by your local locksmith. In most cases they will travel to your location and the process takes less than 30 minutes. No towing necessary and your local locksmith will be cheaper than a dealer. If your vehicle has PATS and it not programmed you will get a "no start".

Item Condition

  • Mounting points are all open and intact
  • Pins perfect, none are broken or bent
  • Lock tabs in place
  • Connector plastic may have minor chip but pins, guides and lock tabs are in place.

Warranty

This ECM comes with a 90 day warranty from the date of purchase. Please keep a copy of your purchase record which we will send with your item.
