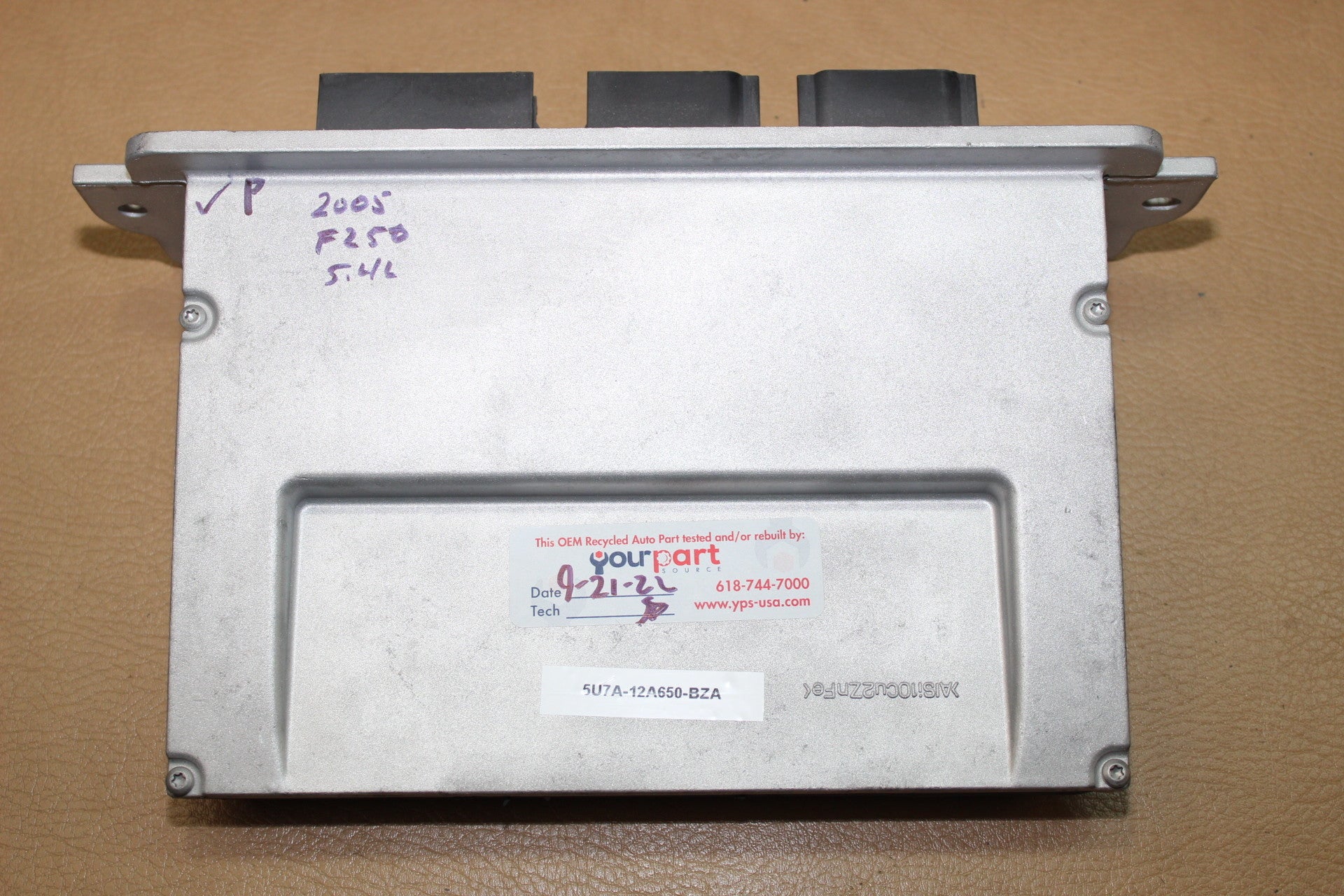

2005 F-150 F-250 5.4L ECU PCM ENGINE COMPUTER 5C3A-12A650-KFB REMAN OEM 05

  • $549.99
    Unit price per

Product Description

Part Number

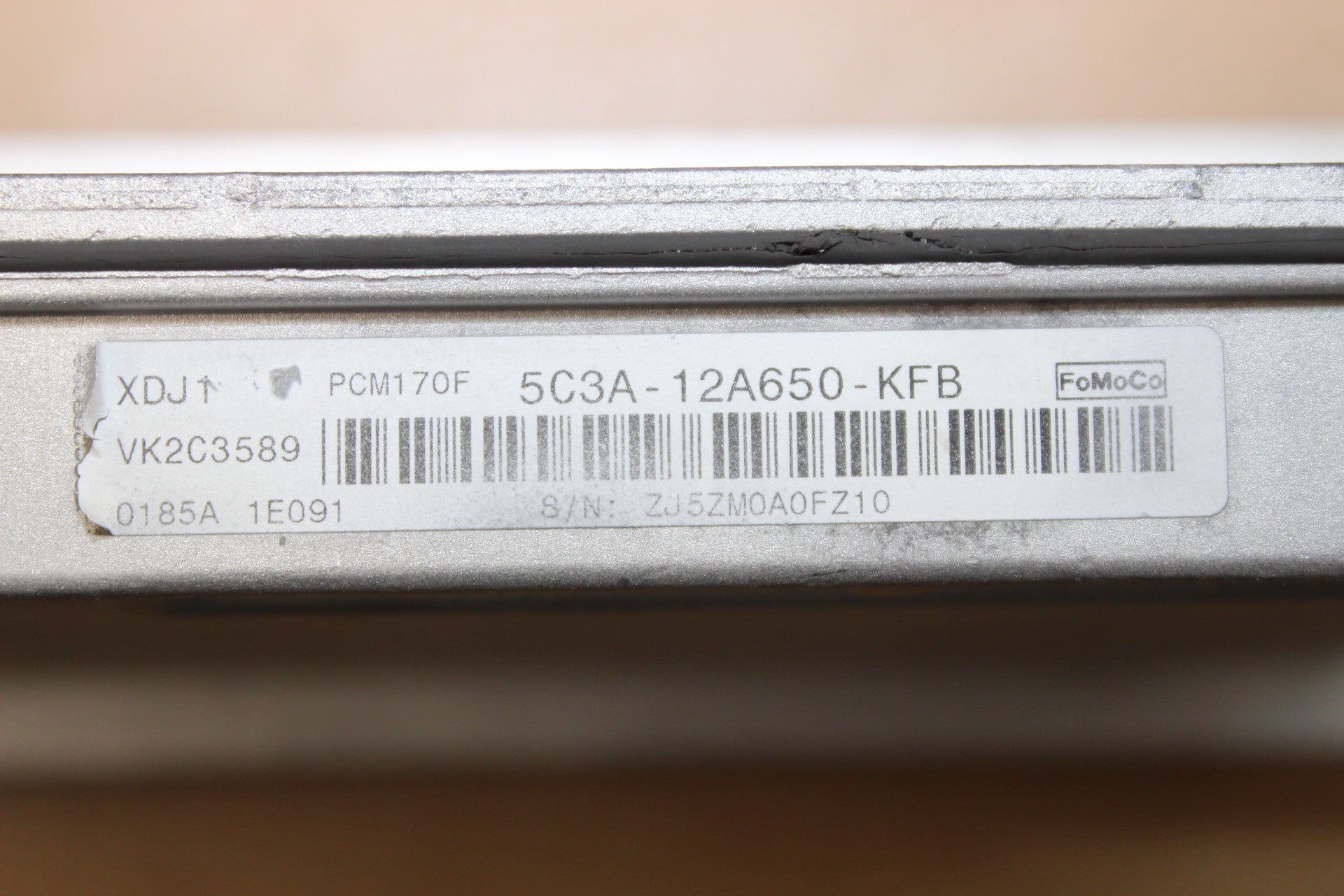

5C3A-12A650-KFB You must match this!
ECU will arrive with updated part number sticker having been programmed with latest Ford Software Updates!


This ecu will interchange or replace the following ecu part numbers on 2005 5.4L Trucks:


Tech Notes

    ECU has been rebuilt then tested with our state of the art vehicle simulator which tests over 25 circuits of the ECU! Some of those are listed below:
  • No O2 sensor issues, no EGR, No P0443 issues! That circuit has been rebuilt!
  • Reference Voltage Good!
  • ECU has TCU functionality!
  • ECU powered up and has communication!
  • ECU fuel pump/main relay tested good!
  • ECU injectors/coils tested good and much more!

Install Notes

  • Disconnect the negative terminal of the battery. Make sure the battery connector is not touching the battery post.
  • Disconnect and remove the module to be replaced.
  • Install and connect the replacement module.
  • Connect the negative terminal of the battery.
  • For *Plug N Play* See below

*Plug N Play* Programming / PATS Security

For Plug and Play you must have **TWO WORKING KEYS** and follow the below instructions:

Step 1: Purchase correct ecu for your application - see fitment guide above for details.

Step 2: Program ecu to your VIN. We provide free programming for our customers. During checkout you must list your VIN and mileage in the "Notes to Seller" for us to program the ECM. If we do not hear from you through the order notes or a message through eBay we will assume your mechanic is performing the programming (no problem at all) and we will ship the ECM out the next business day as directed by eBay.

Step 3: If for some reason you believe your vehicle has PATS contact us first, you may need a different part number.

Item Conditio

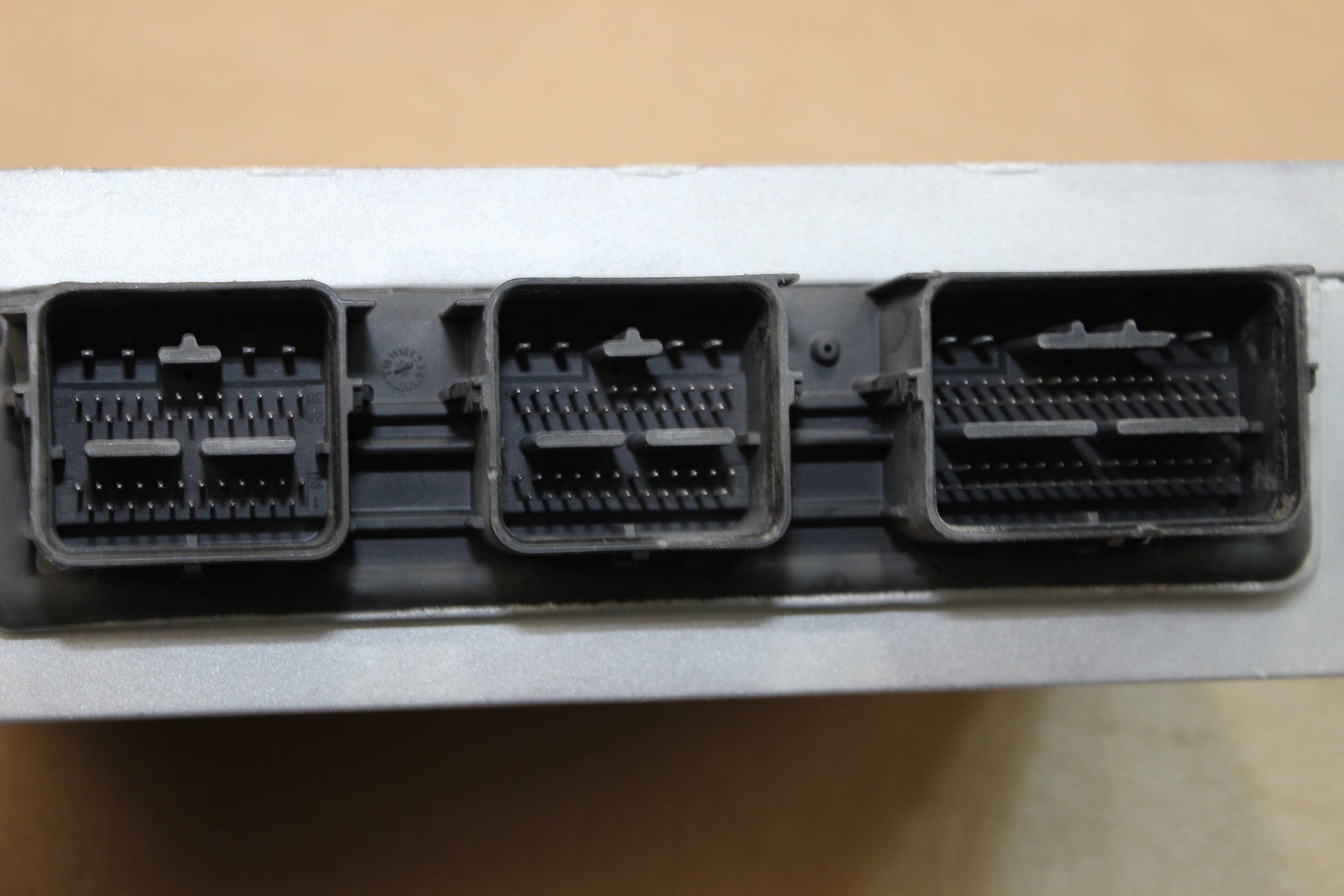

  • Mounting points are all open and intact
  • Pins perfect, none are broken or bent
  • Lock tabs in place
  • Connector plastic may have minor chip but pins, guides and lock tabs are in place.


This ECM comes with a 90 day warranty from the date of purchase. Please keep a copy of your purchase record which we will send with your item.
