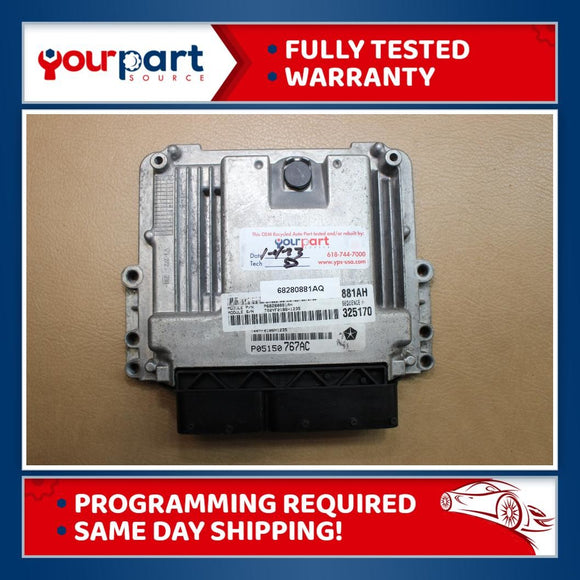

16 RAM 1500 3.0L TURBO DIESEL AT ECU ECM PCM ENGINE COMPUTER 68280881AQ TESTED
Product Description
Part Number
68280881AQ
PCM requires programming before installation.
Fitment/Interchange
This PCM will interchange or replace the following part numbers:
68280881AA
68280881AB
68280881AC
68280881AD
68280881AE
68280881AF
68280881AG
68280881AH
68280881AI
68280881AJ
68280881AK
68280881AL
68280881AM
68280881AN
68280881AO
68280881AP
68280881AQ
P68280881AQ
R8280881AQ
68280881
Tech Notes
- PCM has been tested with our state of the art vehicle simulator which tests over 25 circuits of the PCM! Some of those are listed below:
- Reference Voltage Good!
- PCM powered up and has communication!
- Starter, ASD and SCR relay circuits test good!
- Vaccum, DEF and Fuel Pump circuits test good!
- Wastegate, Swirl motor, TTVA and EGR circuits test good!
- PCM injectors and A/C clutch test good!
Install Notes
- Disconnect the negative terminal of the battery. Make sure the battery connector is not touching the battery post.
- Disconnect and remove the module to be replaced.
- Install and connect the replacement module.
- Connect the negative terminal of the battery.
- See "Programming" below for additional install instructions.
Programming
For Plug and Play you must do the following three steps:
Step 1: Match your part number per above fitment/interchange notes
Step 2: Program PCM to your VIN. You will need your local mechanic, dealer or properly equipped locksmith to program your VIN into the PCM and apply any necessary updates. Without doing this you will get a "no start" condition. We recommend you have this done by your local locksmith. In most cases they will travel to your location and the process takes less than 30 minutes. No towing necessary and your local locksmith will be cheaper than a dealer.
Item Condition
- Mounting points are all open and intact
- Pins perfect, none are broken or bent
- There may be some minor chipped plastic on connector but lock tabs are place
Warranty / Optional Core Return
This PCM comes with a 90 day warranty from the date of purchase. Please keep a copy of your purchase record which we will send with your item.
If you would like to return your core for a $10 partial refund let us know during checkout through the "notes to seller" and we will send a prepaid return label with your order. It's that simple. Once your original item comes in we will process your refund promptly.
