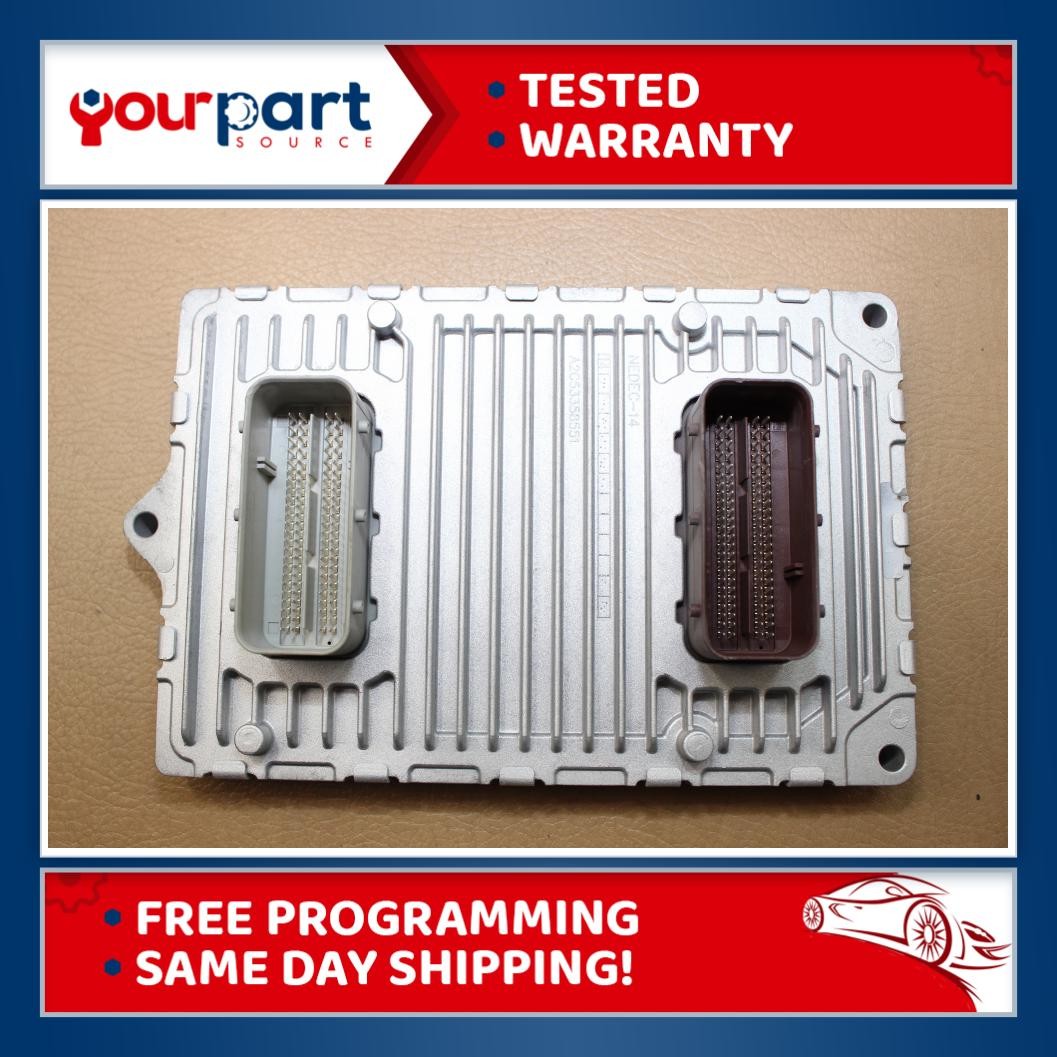

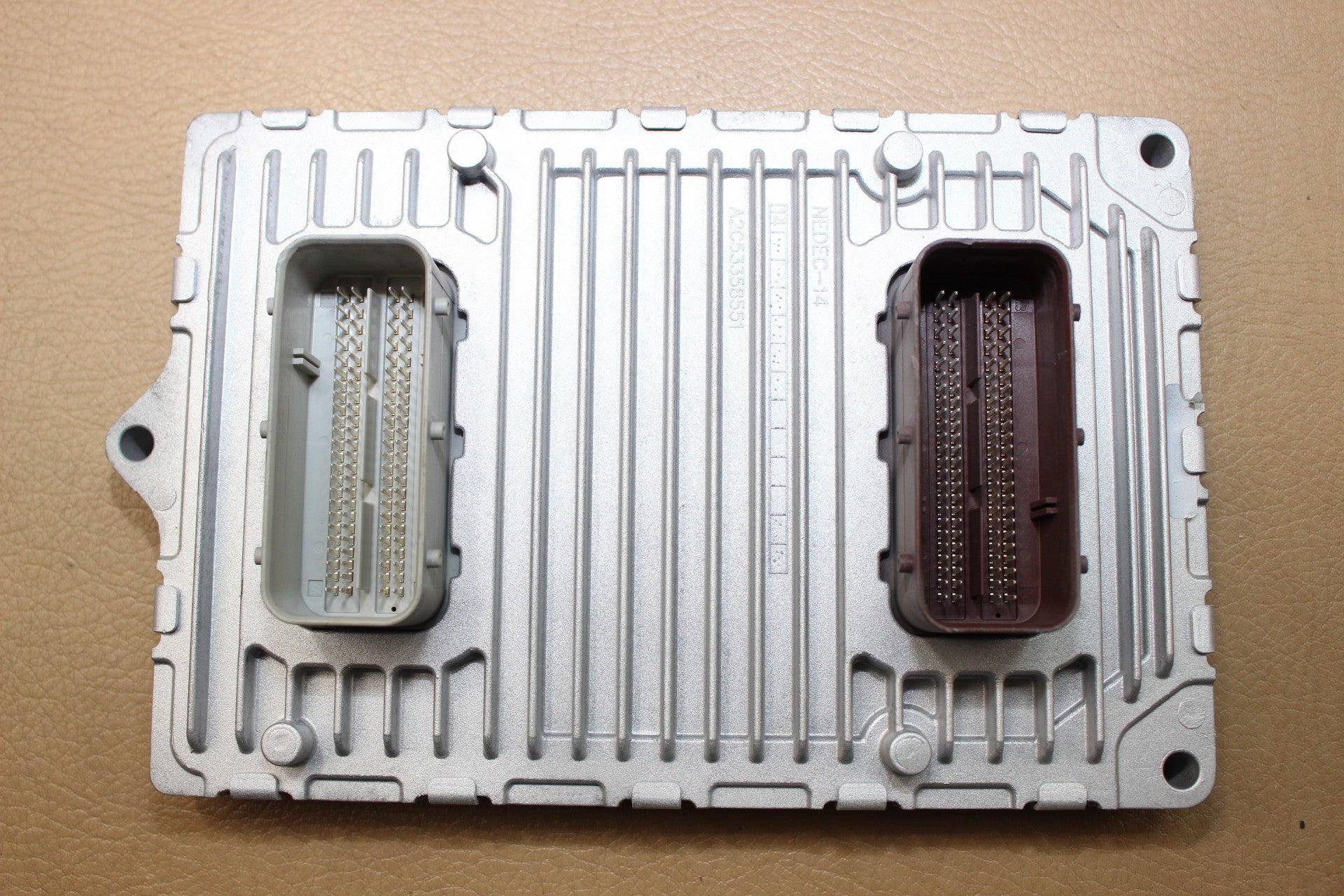

15 JEEP CHEROKEE 3.2L AWD ECU ECM ENGINE MODULE COMPUTER CONTROL 68242067 TESTED

  • $139.99
    Unit price per


Product Description

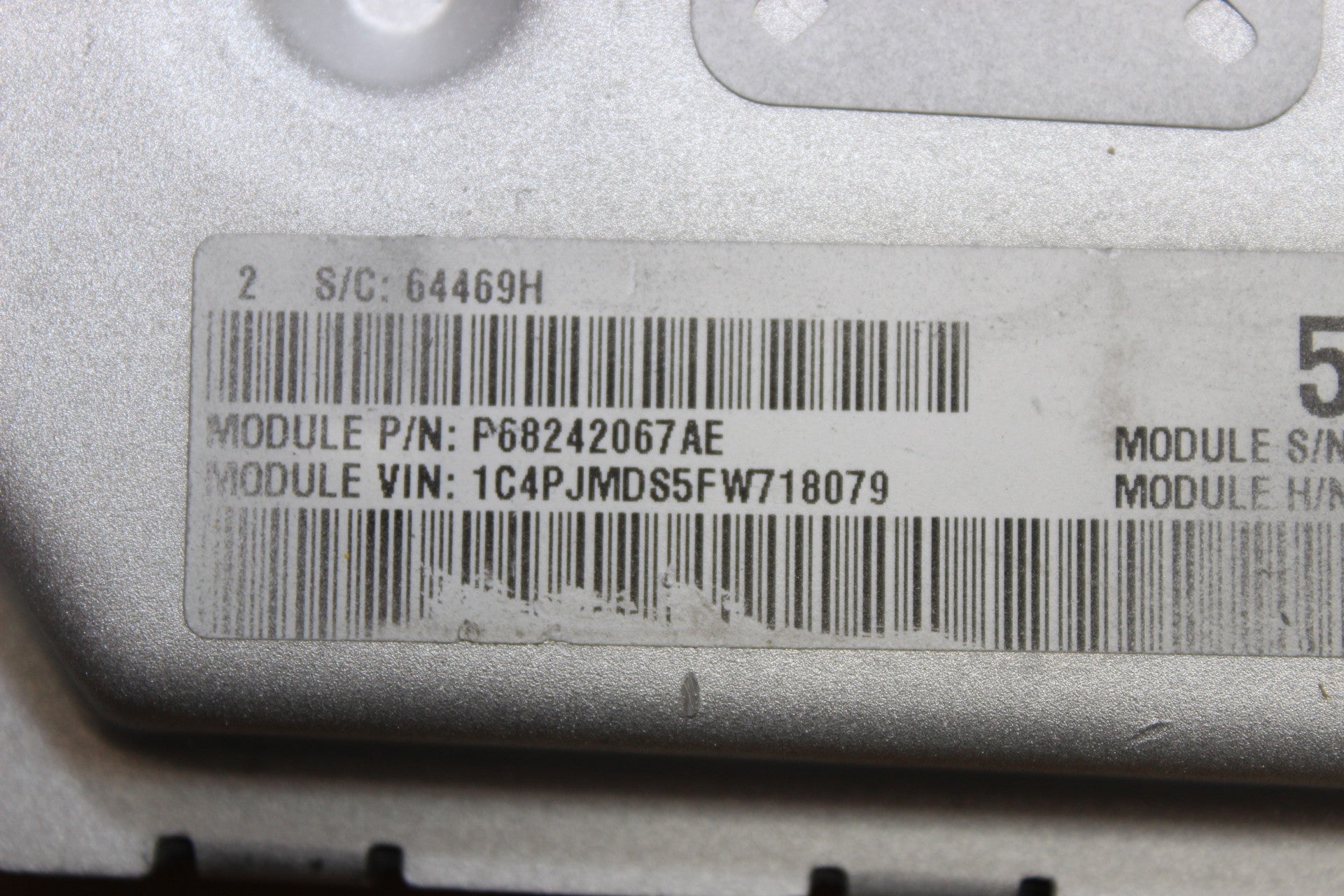

Part Number

68242067AH

ECM does have SKIM security enabled

We can program this ecu for plug and play prior to shipment! We just need your VIN.

Fitment/Interchange



This ecu will interchange or replace the following part numbers:

68242067AA

68242067AB

68242067AC

68242067AD

68242067AE

68242067AF

68242067AG

68242067AH

68242067

Tech Notes

    ECU has been tested with our state of the art vehicle simulator which tests over 25 circuits of the ECU! If any issues were found the unit has been rebuilt. Some of these tests are listed below:
  • Alternator charging and purge circuits are working as they should
  • O2 Heater circuits good!
  • Reference Voltage good!
  • ECU powered up and has communication!
  • ECU fuel pump/main relay test good!
  • ECU injectors/coils test good and much more!

Install Notes

  • Disconnect the negative terminal of the battery. Make sure the battery connector is not touching the battery post.
  • Disconnect and remove the module to be replaced.
  • Install and connect the replacement module.
  • Connect the negative terminal of the battery.
  • See "Programming" below for additional install instructions.

Programming

For Plug and Play you must follow the below three steps:

Step 1: Match your part number series per above fitment guide

Step 2: Match your ecu security. Most NGC style ecu's have SKIM security and are not plug and play. (You generally will have grey ignition keys or chipped keys.)

Step 3: Program ecu to your VIN and mileage. We provide free programming for our customers. During checkout you must list your VIN and mileage in the "Notes to Seller" for us to program the ECM. If we do not hear from you through the order notes or a message through eBay we will assume your mechanic is performing the programming (no problem at all) and we will ship the ECM out the next business day as directed by eBay.

Item Condition

  • Mounting points are all open and intact
  • Pins perfect, none are broken or bent
  • Lock tabs in place

Warranty / Optional Core Return

This ECM comes with a 90 day warranty from the date of purchase. Please keep a copy of your purchase record which we will send with your item.

If you would like to return your core for a $15 partial refund let us know during checkout through the "notes to seller" and we will send a prepaid return label with your order. It's that simple. Once your original item comes in we will process your refund promptly.
