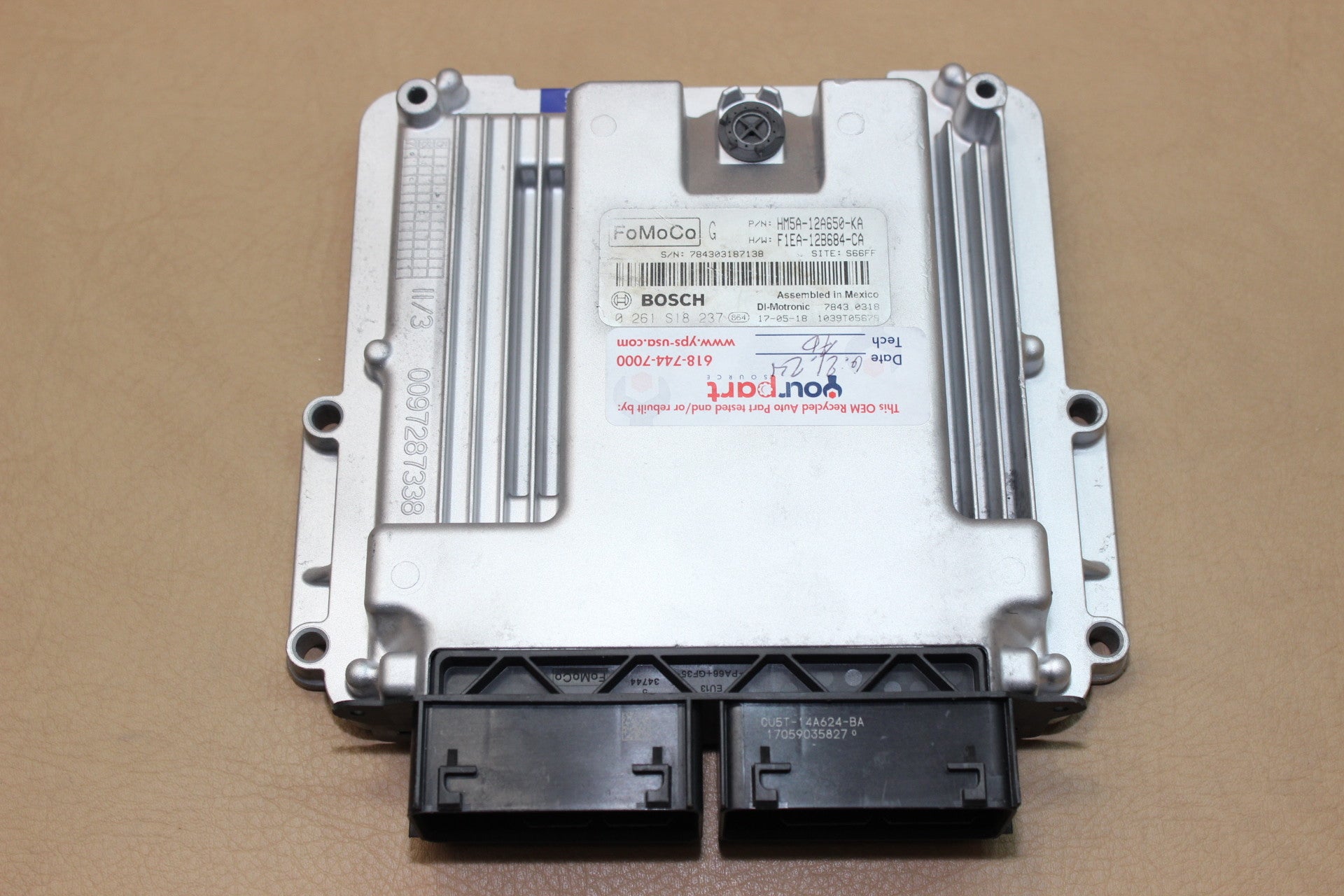

15-18 FORD FOCUS 2.0L TURBO ENGINE COMPUTER ECM PCM ECU HM5A-12A650-KA TESTED
15-18 FORD FOCUS 2.0L TURBO ENGINE COMPUTER ECM PCM ECU HM5A-12A650-KA TESTED
15-18 FORD FOCUS 2.0L TURBO ENGINE COMPUTER ECM PCM ECU HM5A-12A650-KA TESTED
15-18 FORD FOCUS 2.0L TURBO ENGINE COMPUTER ECM PCM ECU HM5A-12A650-KA TESTED
15-18 FORD FOCUS 2.0L TURBO ENGINE COMPUTER ECM PCM ECU HM5A-12A650-KA TESTED
15-18 FORD FOCUS 2.0L TURBO ENGINE COMPUTER ECM PCM ECU HM5A-12A650-KA TESTED
15-18 FORD FOCUS 2.0L TURBO ENGINE COMPUTER ECM PCM ECU HM5A-12A650-KA TESTED
15-18 FORD FOCUS 2.0L TURBO ENGINE COMPUTER ECM PCM ECU HM5A-12A650-KA TESTED
15-18 FORD FOCUS 2.0L TURBO ENGINE COMPUTER ECM PCM ECU HM5A-12A650-KA TESTED
15-18 FORD FOCUS 2.0L TURBO ENGINE COMPUTER ECM PCM ECU HM5A-12A650-KA TESTED

15-18 FORD FOCUS 2.0L TURBO ENGINE COMPUTER ECM PCM ECU HM5A-12A650-KA TESTED

Product Description

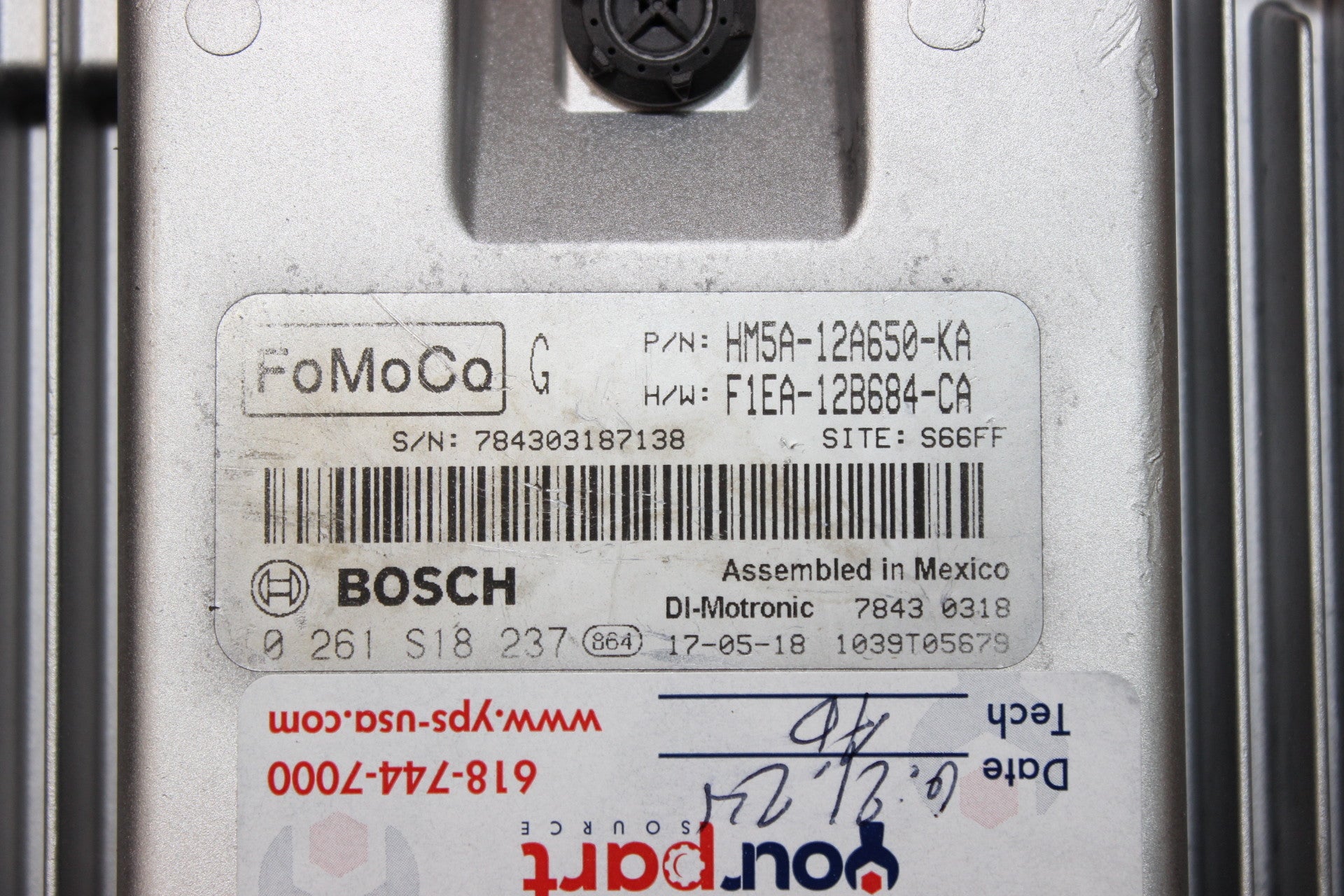

Part Number

HM5A-12A650-KA

Fitment/Interchange

    This ECM will interchange or replace 2015 to 2018 Ford Focus vehicles with a 2.0L engine and one of these part numbers:
  • HM5A-12A650-KA

Tech Notes

    ECU has been tested with our state of the art vehicle simulator which tests over 25 circuits of the ECU! Some of those are listed below:
  • Reference Voltage Good!
  • ECU transmission communication good!
  • ECU powered up and has communication!
  • ECU fuel pump/main relay tested good!
  • ECU injectors/coils tested good and much more!

Install Notes

  • Disconnect the negative terminal of the battery. Make sure the battery connector is not touching the battery post.
  • Disconnect and remove the module to be replaced.
  • Install and connect the replacement module.
  • Connect the negative terminal of the battery.
  • See "Programming / PATS Security" below for additional install instructions.

Programming / PATS Security

For Plug and Play you must do the following three steps:

Step 1: Match your part number per above fitment guide

Step 2: Program ecu to your VIN. Your local dealer or certified mechanic will be able to handle this and your Locksmith may actually be able to program both the VIN and PATS. We recommend checking with your local locksmith prior to contacting your mechanic to see if they can do both.

Step 3: If your vehicle has PATS security (Most Ford/Lincoln/Mercury's do) you must have your keys programmed. We recommend you have this done by your local locksmith. In most cases they will travel to your location and the process takes less than 30 minutes. No towing necessary and your local locksmith will be cheaper than a dealer.

Item Condition

  • Mounting points are all open and intact

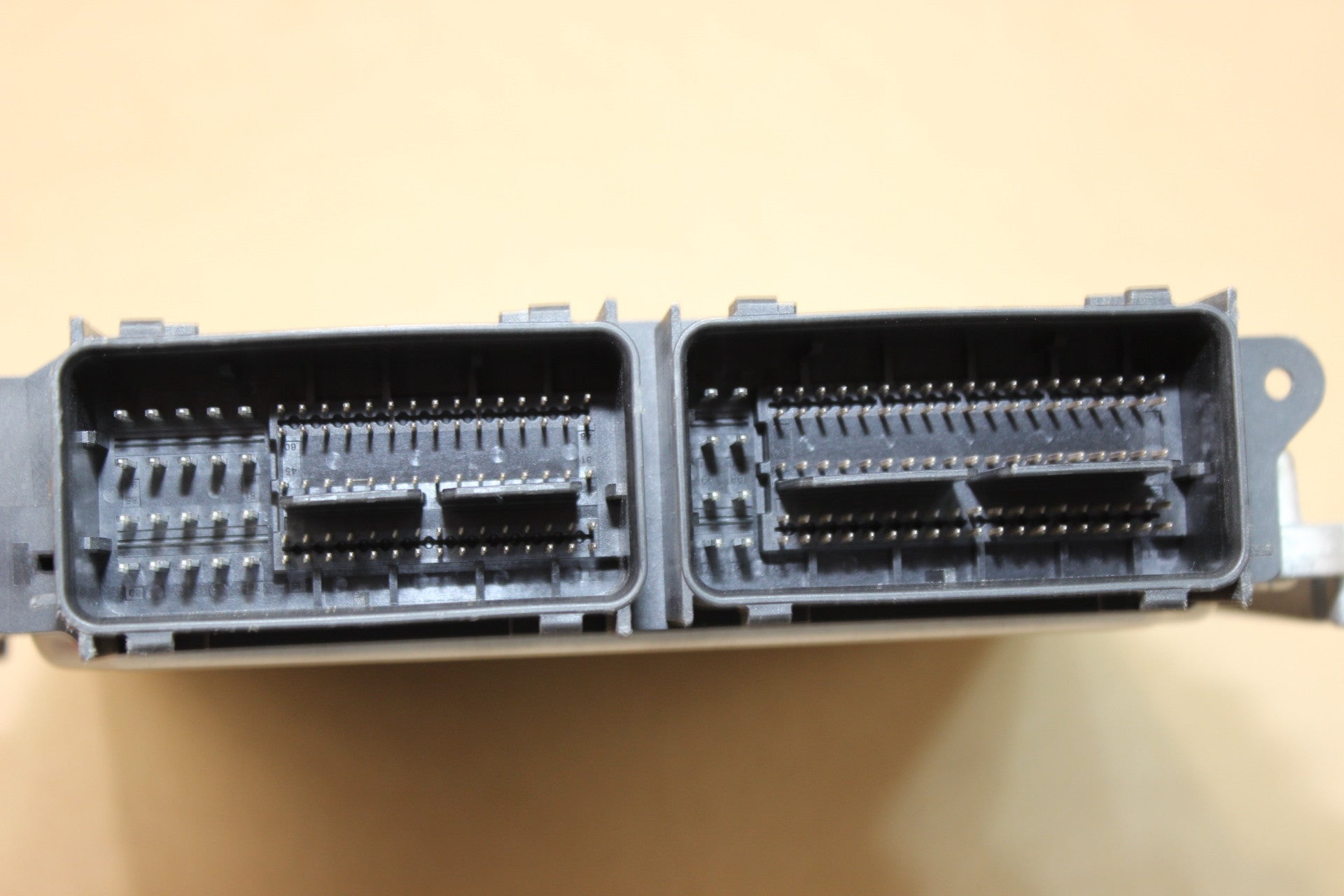

  • Pins perfect, none are broken or bent
  • Connectors may some small chips in the plastic but all of the lock tabs are in place

Warranty

This ECM comes with a 90 day warranty from the date of purchase. Please keep a copy of your purchase record which we will send with your item.
