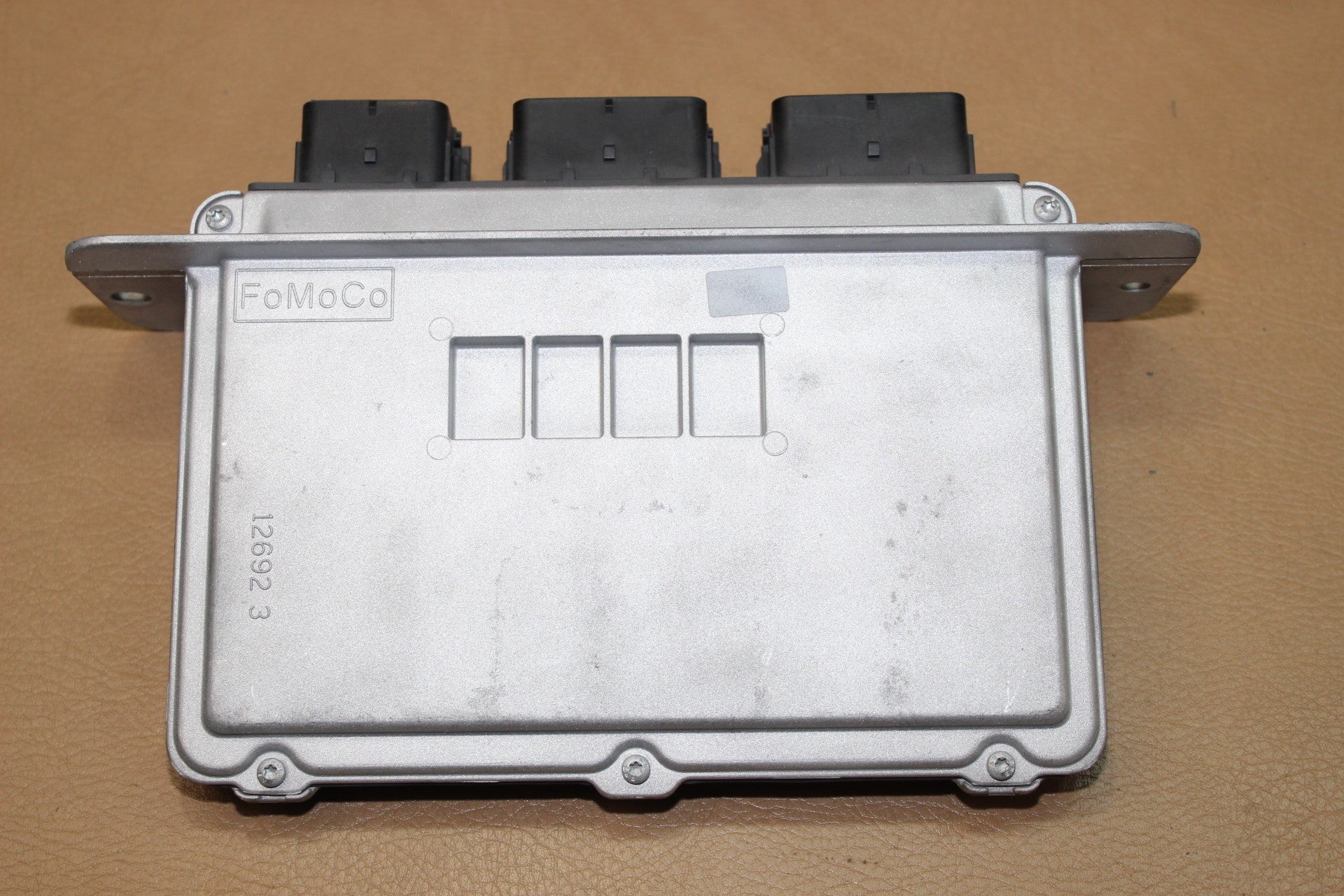

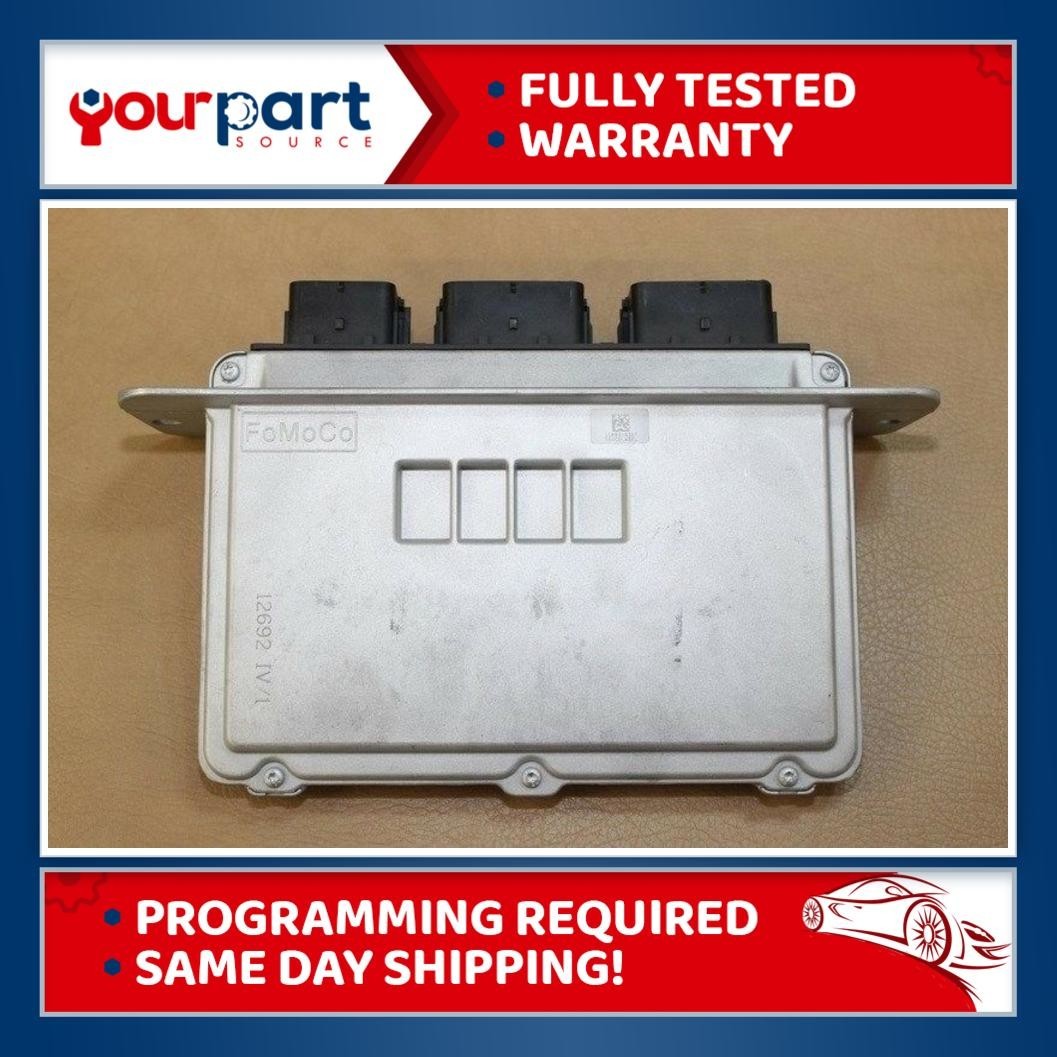

11 FORD E-150 E-250 E350 5.4L ECU ECM PCM ENGINE COMPUTER BC2A-12A650-BBC TESTED
Product Description
Part Number

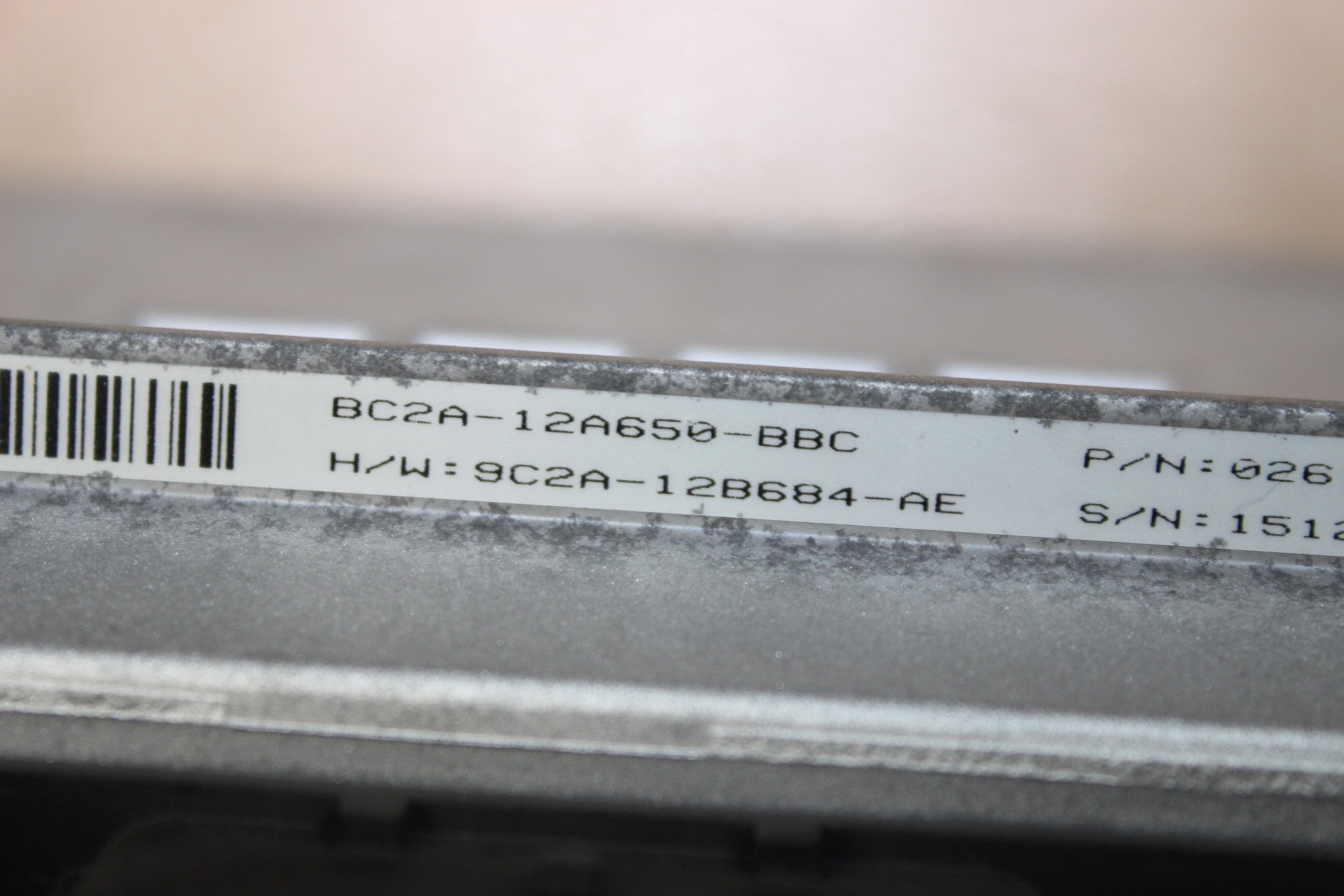

BC2A-12A650-BBC
*VIN PROGRAMMING REQUIRED* *PATS PROGRAMMING REQUIRED*
Fitment/Interchange
This ecu will interchange or replace the following ecu part numbers on 2011 5.4L E-150 E-250 E-350 E-450 vans:
BC2A-12A650-AXA
BC2A-12A650-AXB

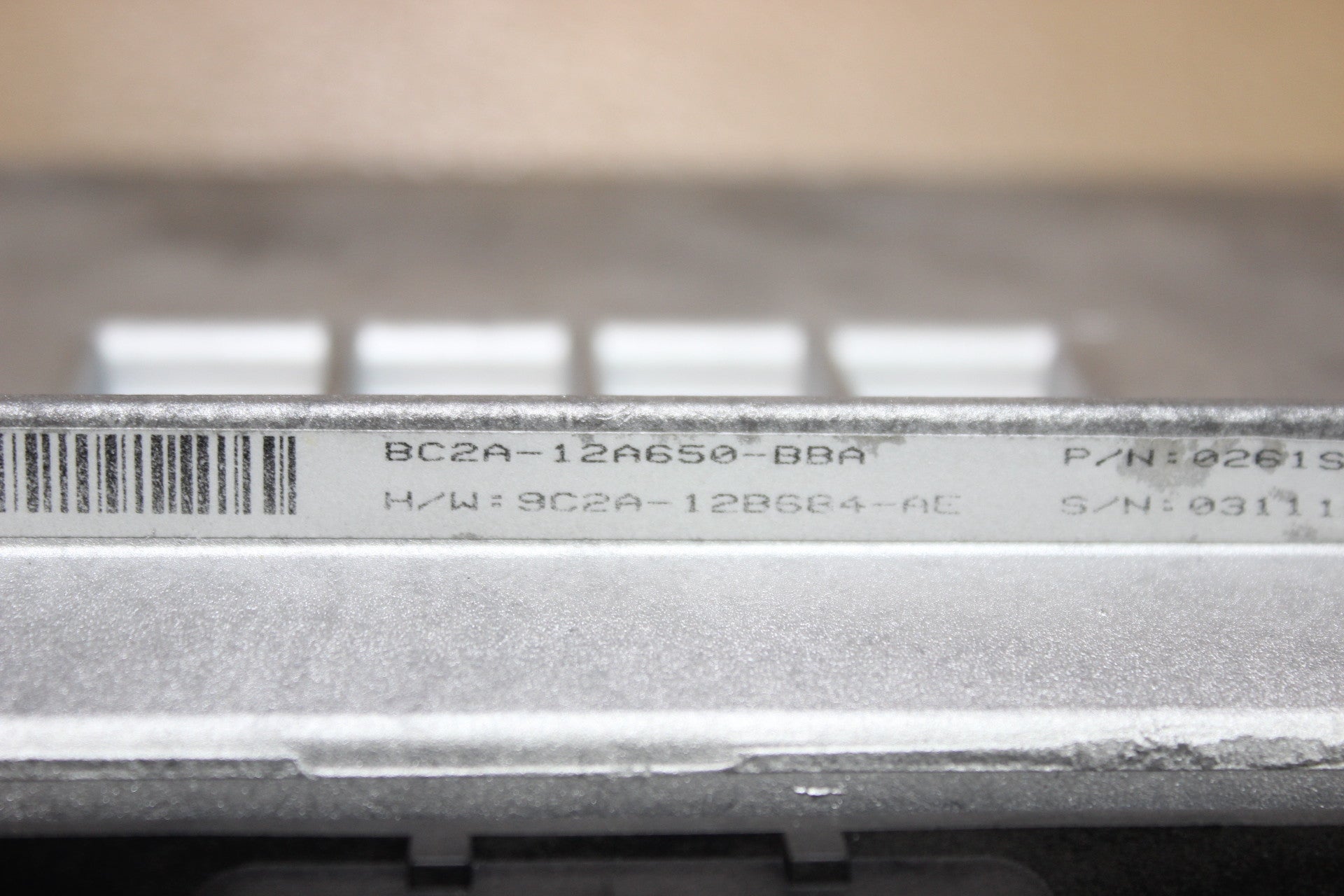

BC2A-12A650-BBA
BC2A-12A650-BBB
BC2A-12A650-BBC
BC2A-12A650-BCA
BC2A-12A650-BCB
BC2A-12A650-BDA
BC2A-12A650-BDB
BC2A-12A650-BEA
BC2A-12A650-BEB
Tech Notes
- ECU has been tested with our state of the art vehicle simulator which tests over 25 circuits of the ECU! Some of those are listed below:
- ECU Starter motor control.
- ECU Alternator control
- ECU O2 heaters
- ECU powered up and has communication
- ECU fuel pump/main relay
- ECU EVR
- ECU Shift Solenoids
- ECU A/C Clutch
- ECU injectors/coils tested good and much more!
Install Notes
- Disconnect the negative terminal of the battery. Make sure the battery connector is not touching the battery post.
- Disconnect and remove the module to be replaced.
- Install and connect the replacement module.
- Connect the negative terminal of the battery.
- See "Programming / PATS Security" below for additional install instructions.
Programming / PATS Security
For Plug and Play you must do the following three steps:
Step 1: Match your part number per above fitment/interchange notes
Step 2: Program ecu to your VIN. You will need your local mechanic, Ford dealer or properly equipped Locksmith to program your VIN into the ecu. Without this you will get a "no start" condition.
Step 3: If your vehicle has PATS security (Most Ford/Lincoln/Mercury's do) you must have your keys programmed. We recommend you have this done by your local locksmith. In most cases they will travel to your location and the process takes less than 30 minutes. No towing necessary and your local locksmith will be cheaper than a dealer. If your vehicle has PATS and it not programmed you will get a "no start".
Item Condition
- Mounting points are all open and intact

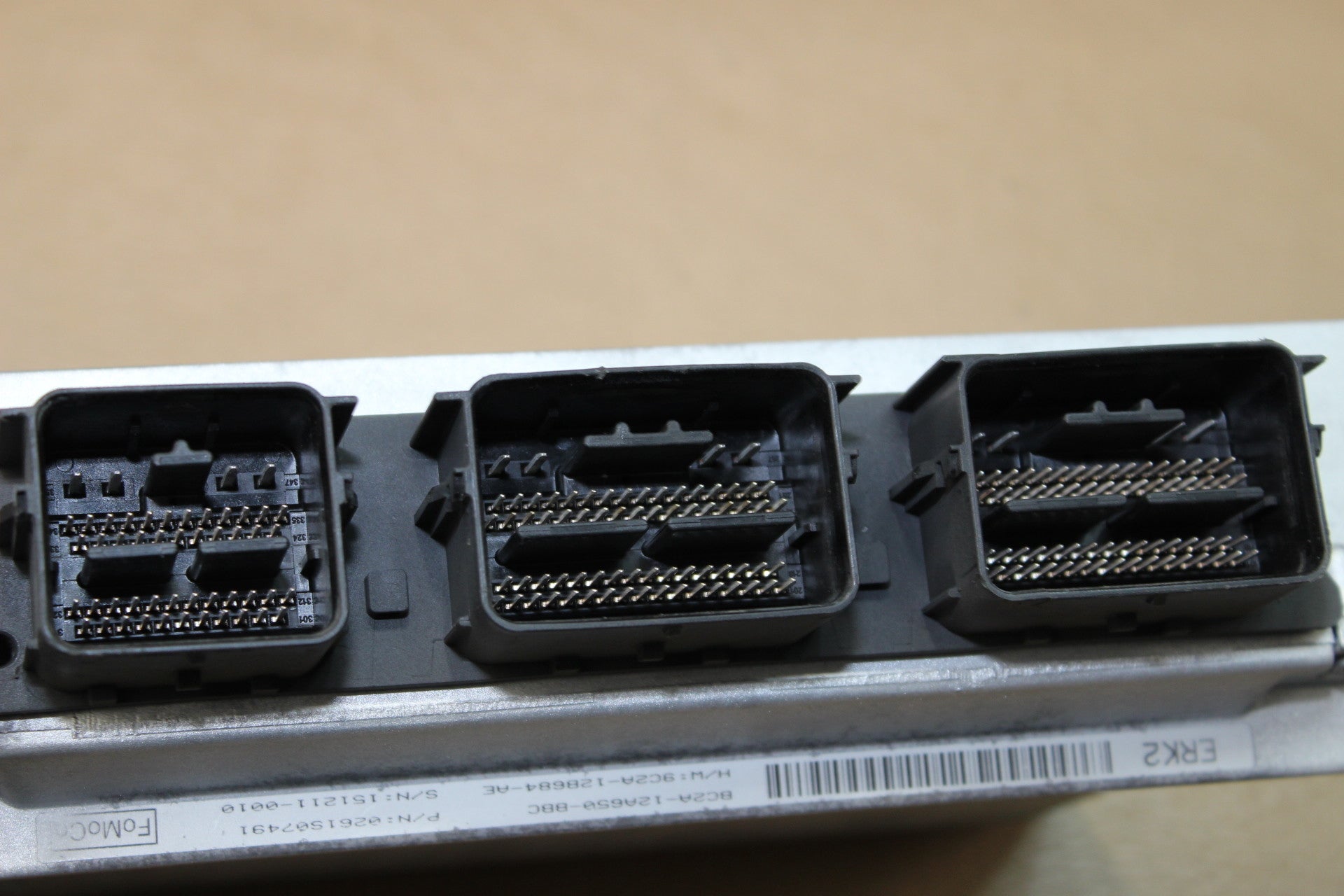

- Pins perfect, none are broken or bent
- Lock tabs in place
- Connector plastic may have minor chip but pins, guides and lock tabs are in place.
Warranty
This ECM comes with a 90 day warranty from the date of purchase. Please keep a copy of your purchase record which we will send with your item.
