09 GRAND CHEROKEE 4.7L 4x2 COMPUTER ECU ECM PCM ENGINE CONTROL 68028156AI TESTED

  • $139.99
    Unit price per


Product Description

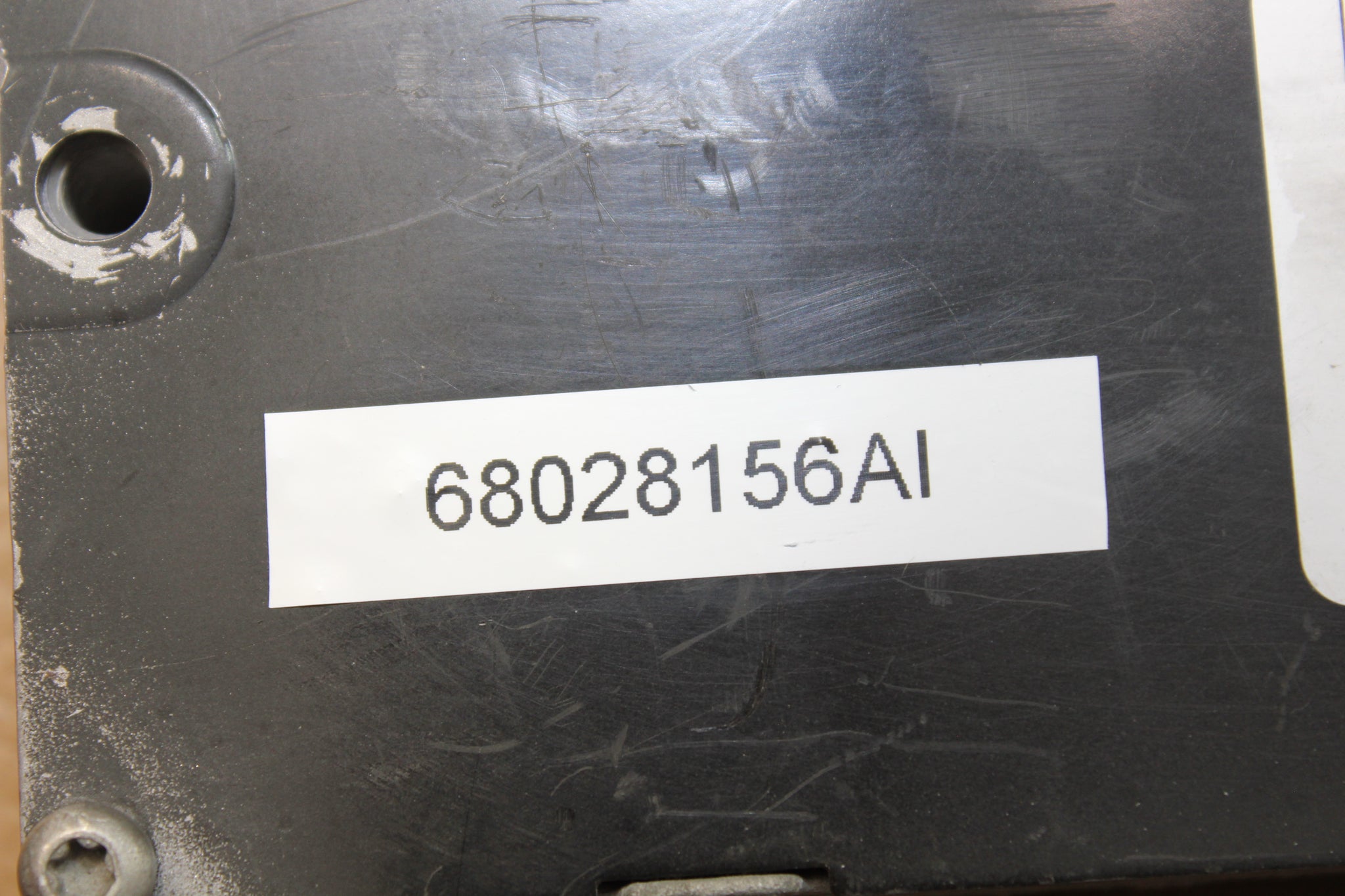

Part Number

68028156AI

ECU has SKIM security and requires programming before installation.

We offer FREE programming, see details below!

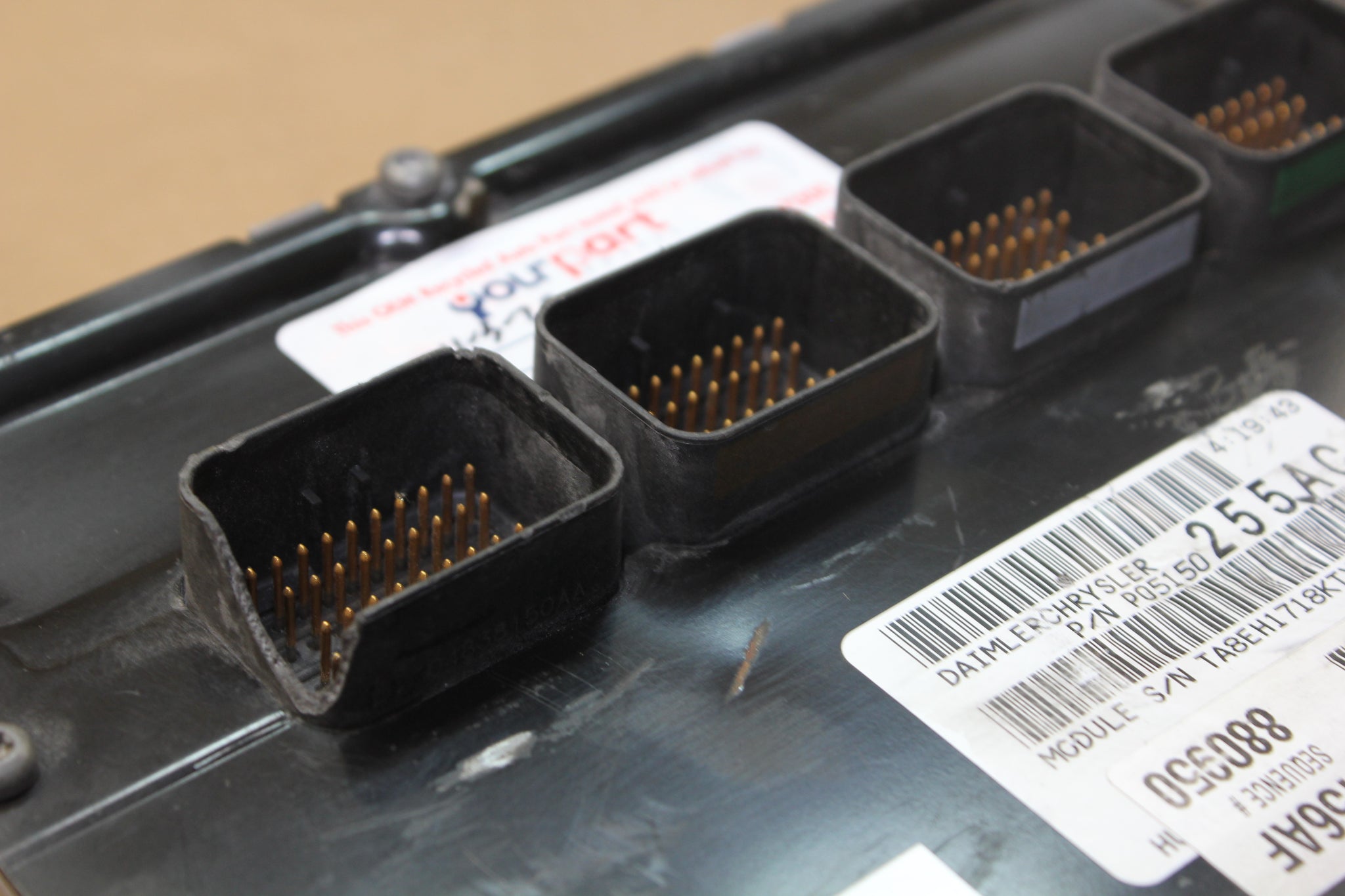

NOTE: One of the connectors is chipped but the lock tab is in place so we do not anticipate an install issue. Review pics prior to purchase.

Fitment/Interchange

This ecu will interchange or replace the following part numbers:

68028156AA

68028156AB

68028156AC

68028156AD

68028156AE

68028156AF

68028156AG

68028156AH

68028156AI

68028156

Tech Notes

    ECU has been tested with our state of the art vehicle simulator which tests over 25 circuits of the ECU! Some of those are listed below:
  • Reference Voltage Good!
  • ECU powered up and has communication!
  • ECU fuel pump/main relay test good!
  • ECU injectors/coils test good and much more!

Install Notes

  • Disconnect the negative terminal of the battery. Make sure the battery connector is not touching the battery post.
  • Disconnect and remove the module to be replaced.
  • Install and connect the replacement module.
  • Connect the negative terminal of the battery.
  • See "Programming" below for additional install instructions.

Programming

For Plug and Play you must follow the below three steps:

Step 1: Match your part number series per above fitment guide

Step 2: Match your ecu security. Most NGC style ecu's have SKIM security and are not plug and play. (You generally will have grey ignition keys or chipped keys.)

Step 3: Program ecu to your VIN and mileage. We provide free programming for our customers. During checkout you must list your VIN and mileage in the "Notes to Seller" for us to program the ECM. If we do not hear from you through the order notes or a message through eBay we will assume your mechanic is performing the programming (no problem at all) and we will ship the ECM out the next business day as directed by eBay.

Item Condition

  • Mounting points are all open and intact
  • Pins perfect, none are broken or bent
  • One of the connectors is chipped but the lock tab is in place so we do not anticipate an install issue. Review pics prior to purchase.

Warranty

This ECM comes with a 90 day warranty from the date of purchase. Please keep a copy of your purchase record which we will send with your item.
