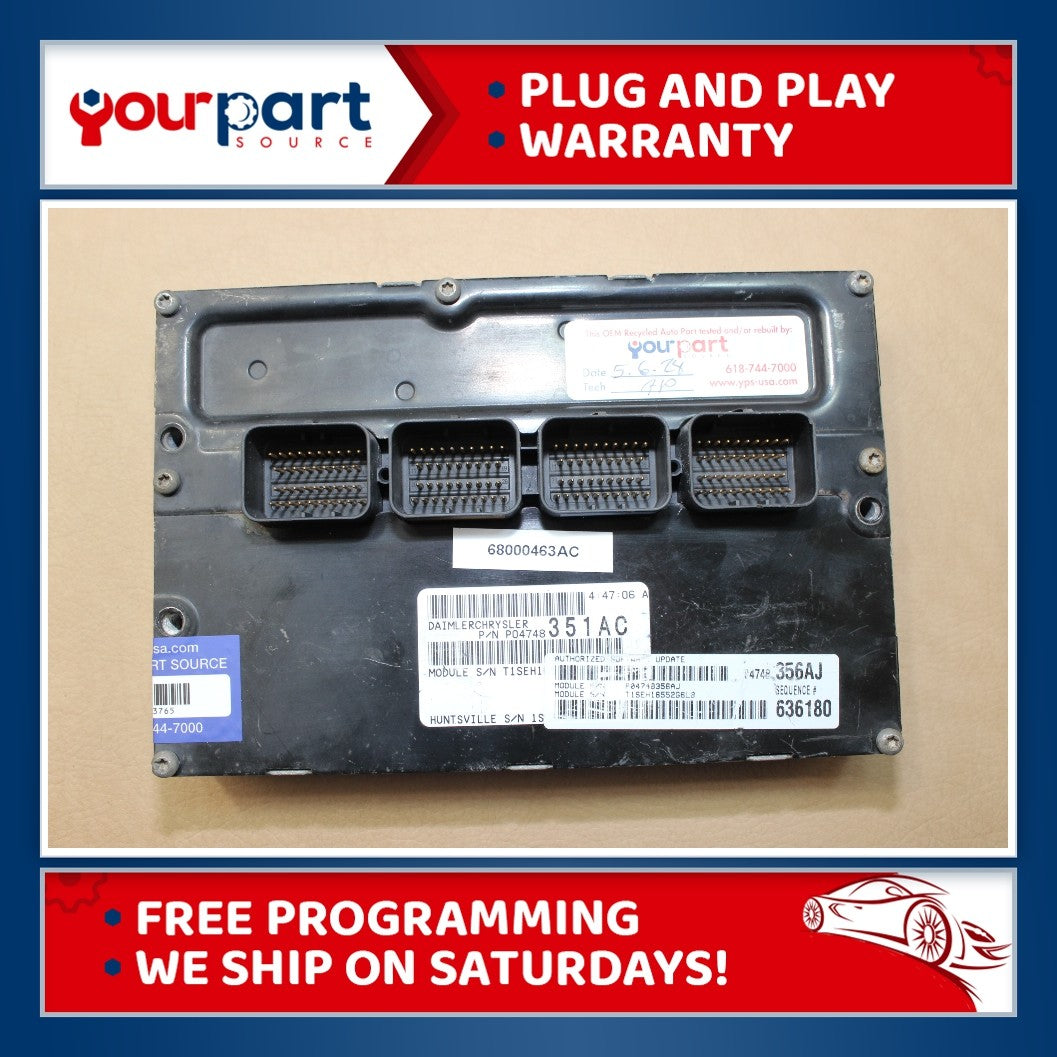

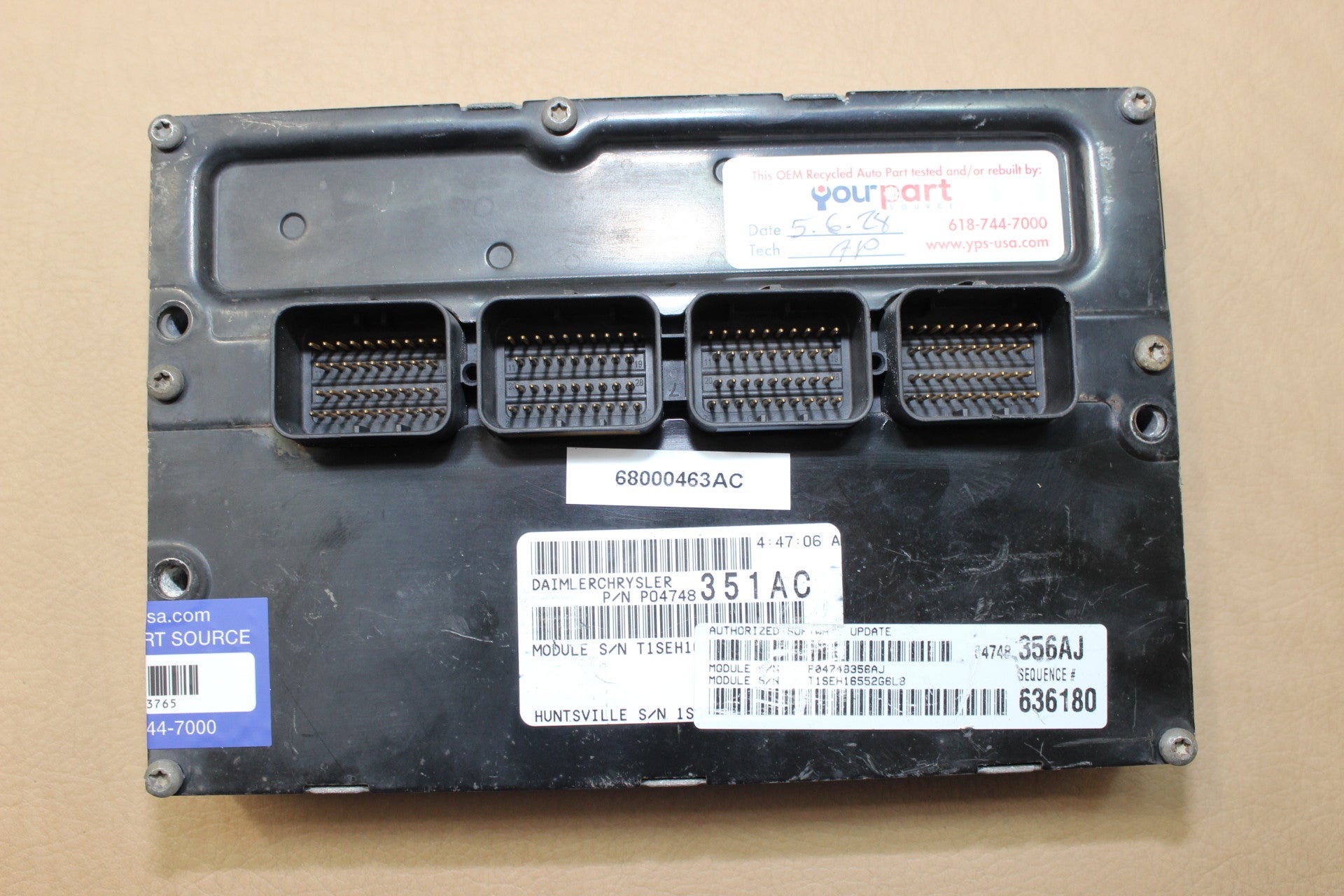

05 CHRYSLER PACIFICA 3.8L ECU ECM PCM ENGINE CONTROL COMPUTER 68000463AC TESTED
Product Description
Part Number
68000463AC
ECU has SKIM security and requires programming before installation.
We offer FREE programming, see details below!
Fitment/Interchange
This ecu will interchange or replace the following part numbers:
04748356AA
04748356AB
04748356AC
04748356AD
04748356AE
04748356AF
04748356AG
04748356AH
04748356AI
04748356AJ
04748356AK
P04748356AK
R4748356AK
04748352
68000463AA
68000463AB
68000463AC
P68000463AC
R8000463AC
68000463
Tech Notes
- ECU has been tested with our state of the art vehicle simulator which tests over 25 circuits of the ECU! Some of those are listed below:
- Reference Voltage Good!
- ECU powered up and has communication!
- ECU fuel pump/main relay test good!
- ECU injectors/coils test good and much more!
Install Notes
- Disconnect the negative terminal of the battery. Make sure the battery connector is not touching the battery post.
- Disconnect and remove the module to be replaced
- Install and connect the replacement module
- Connect the negative terminal of the battery
- See "Programming" below for additional install instructions.
Programming
For Plug and Play you must follow the below three steps:
Step 1: Match your part number series per above fitment guide
Step 2: Match your ecu security. Most NGC style ecu's have SKIM security and are not plug and play. (You generally will have grey ignition keys or chipped keys.)
Step 3: Program ecu to your VIN and mileage. We provide free programming for our customers. During checkout you must list your VIN and mileage in the "Notes to Seller" for us to program the ECM. If we do not hear from you through the order notes or a message through eBay we will assume your mechanic is performing the programming (no problem at all) and we will ship the ECM out the next business day as directed by eBay.
Item Condition
- NOTE: One mounting point may have a post stuck in it. The other two openings will be enough to hold this unit firmly in place. This is due to the location of these ecu's on the vehicle. Please make sure you are ok with this prior to purchase.

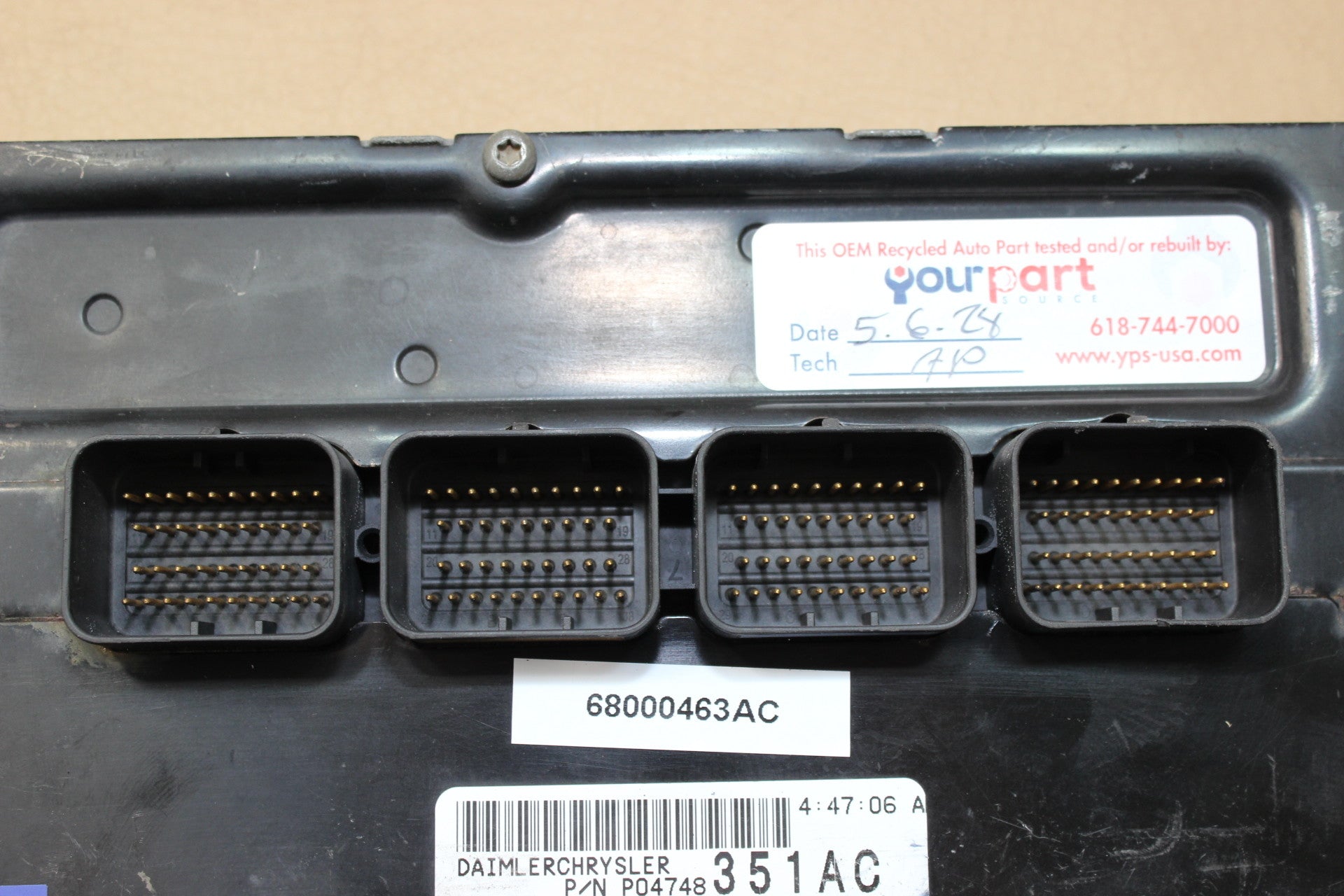

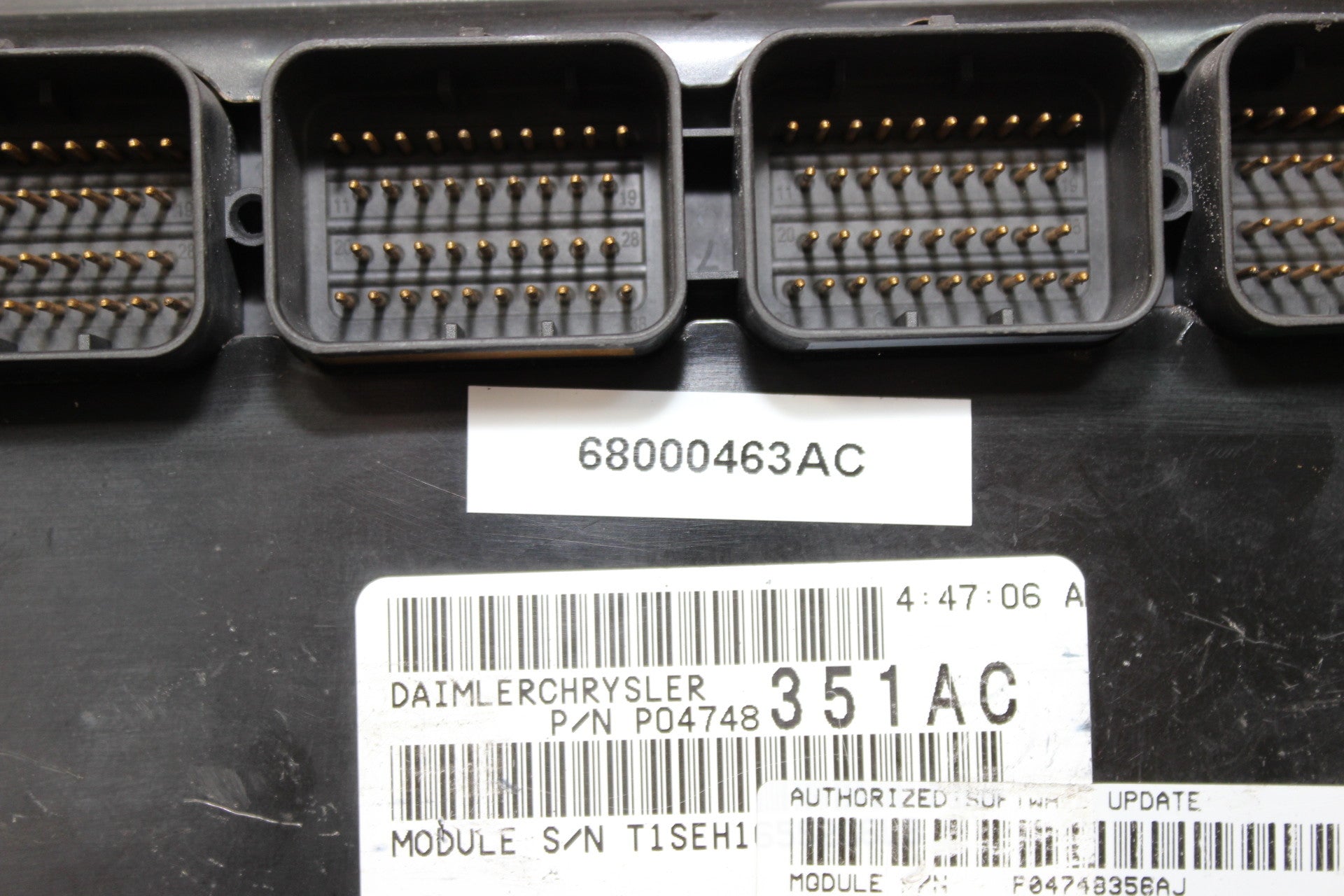

- Pins perfect, none are broken or bent
- Connector may have some small chips in the plastic but all of the lock tabs are place
Warranty / Optional Core Return
This ECM comes with a 90 day warranty from the date of purchase. Please keep a copy of your purchase record which we will send with your item.
If you would like to return your core for a $10 partial refund let us know during checkout through the "notes to seller" and we will send a prepaid return label with your order.It's that simple. Once your original item comes in we will process your refund promptly.
