04-07 SILVERADO 1500 2500 ABS ANTI-LOCK BRAKE CONTROL MODULE 13567145 REFURBISH

  • $134.99
    Unit price per


Product Description

Part Number

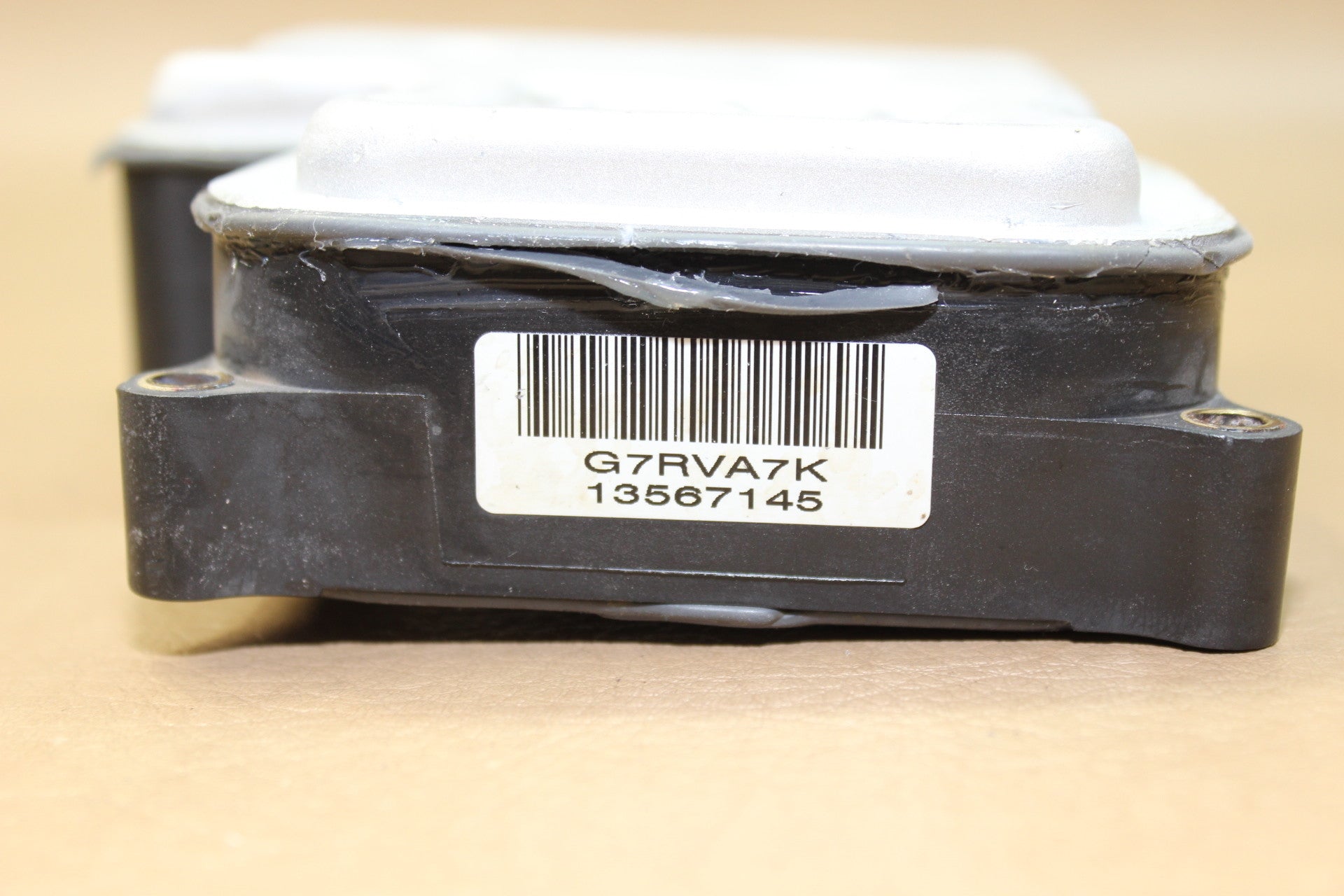

135 SERIES - 13567145, 13567146, 13567147, 13567138

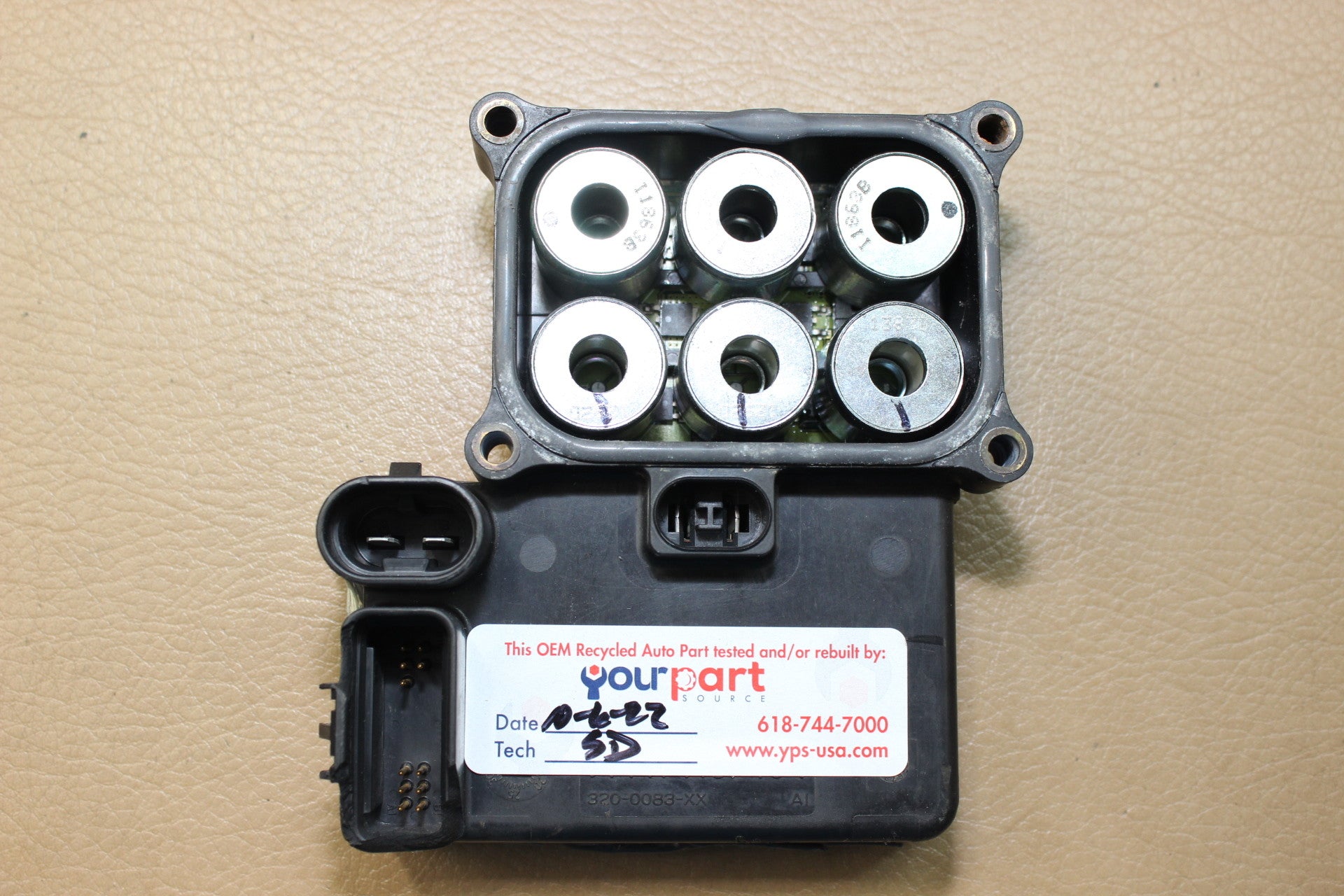

11-2-2 Pin set up. NOTE: Bottom middle connector is different set up than normal Kelsey Hayes module.

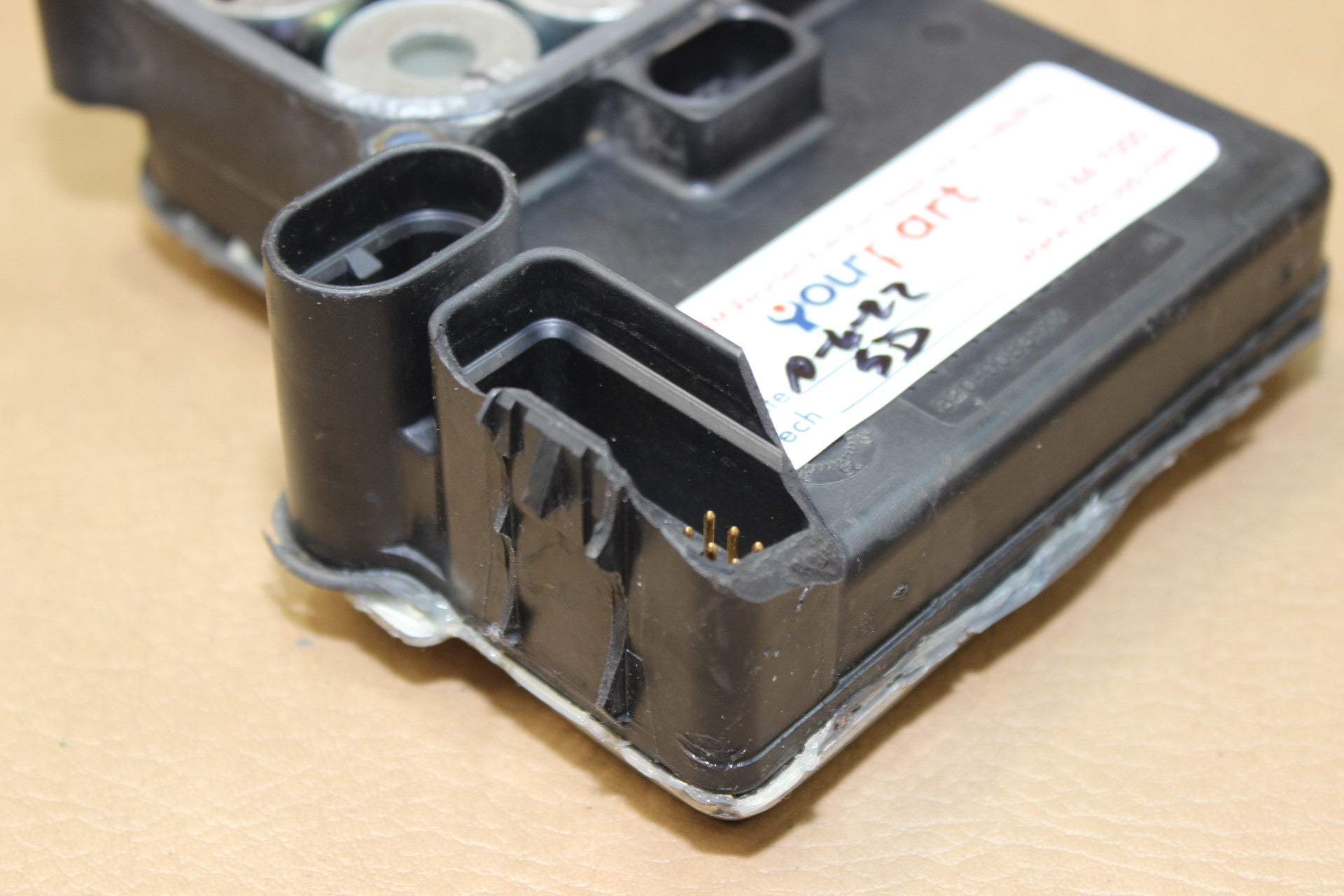

EBCM is free and clear of rust or corrosion. NOTE: The large connector does have some plastic chipped off but the lock tab is in place. Review pictures prior to purchase and do not purchase if you are not comfortable with this.

Fitment

You must have a 135 series module. If you do not match this you more than likely will get a no communication situation or the module will not install because of differences in the connector or pin-out.

  • EBCM may require initialization to your vehicle
  • Prior to purchase please verify your wheel speed sensors are good or have been replaced and that your wiring harness has no breaks as both of these situations can set trouble codes.

Tech Notes

    Module has been repaired and tested by our experienced technical staff! Some of those tests are listed below:
  • Solder joints that typically fail have been repaired
  • 12+ internal components tested and repaired as necessary
  • Relay which typically fails has been replaced

Install Notes

    Please follow below for proper installation of module:
  • Disconnect the negative terminal of the battery. Make sure the battery connector is not touching the battery post.
  • Disconnect and remove module to be replaced. Make sure connector harness is clean and there are no broken wires.
  • Install and connect the replacement module.
  • Connect the negative terminal of the battery.
  • After install clear Diagnostic Trouble Codes and drive vehicle for 10-15 miles.
  • Clear codes again and no codes should reappear.

Optional Core Refund

    If you would like to send your ABS module back to us for a $15 refund, please let us in the "Notes to Seller" box and we will include a prepaid return label with your order. It's that simple! Again, this is optional and you are not obligated to send your ABS module back to us.
  • We will not be able to issue a core refund for units that have been completely destroyed by rust.

Warranty

  • This EBCM carries a 6 Month warranty from the date of purchase. Please keep a copy of your sales record which we will send with your order.
