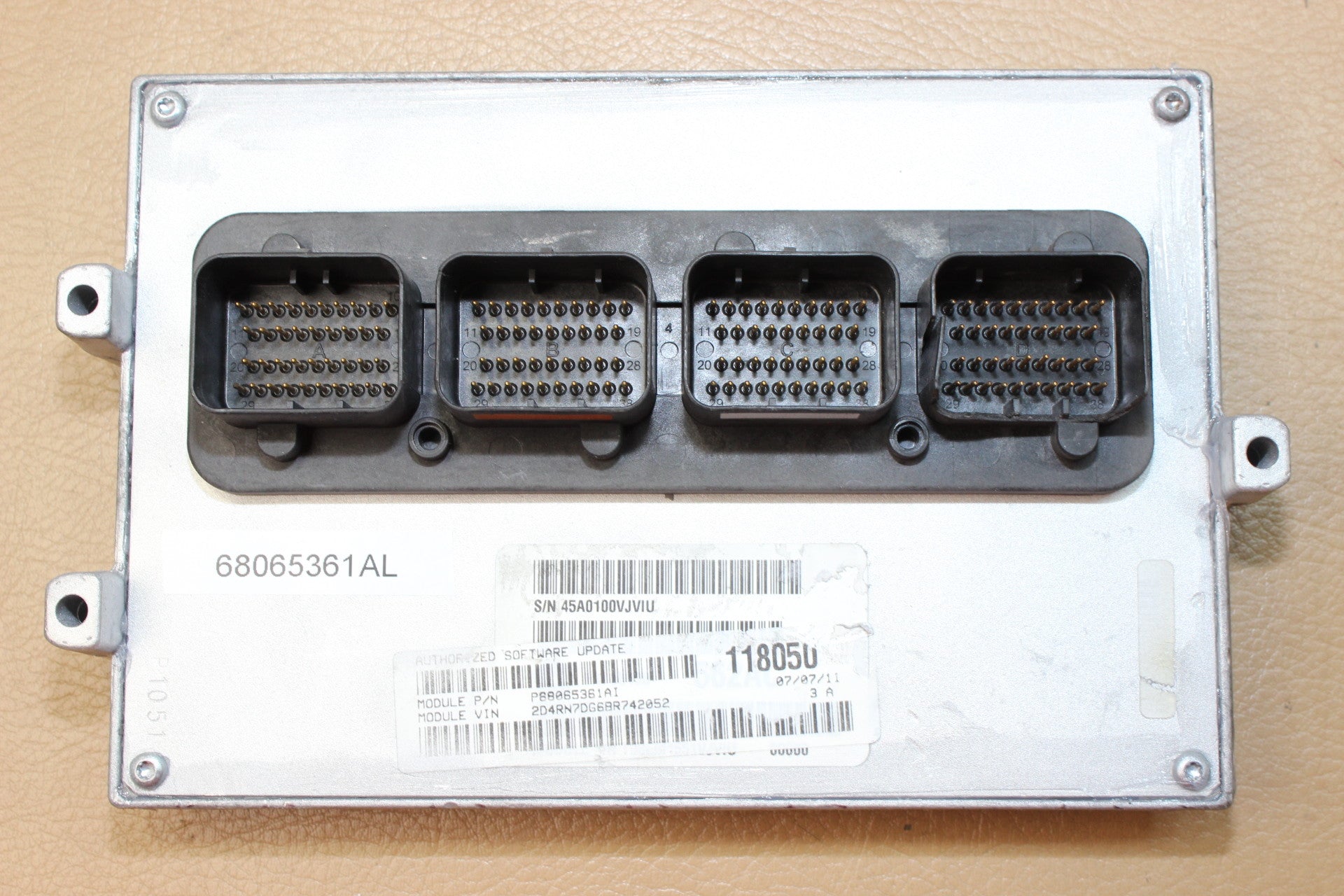

11 TOWN & COUNTRY CARAVAN 3.6L ENGINE COMPUTER ECU ECM PCM 68065361AL TESTED
Product Description
Part Number

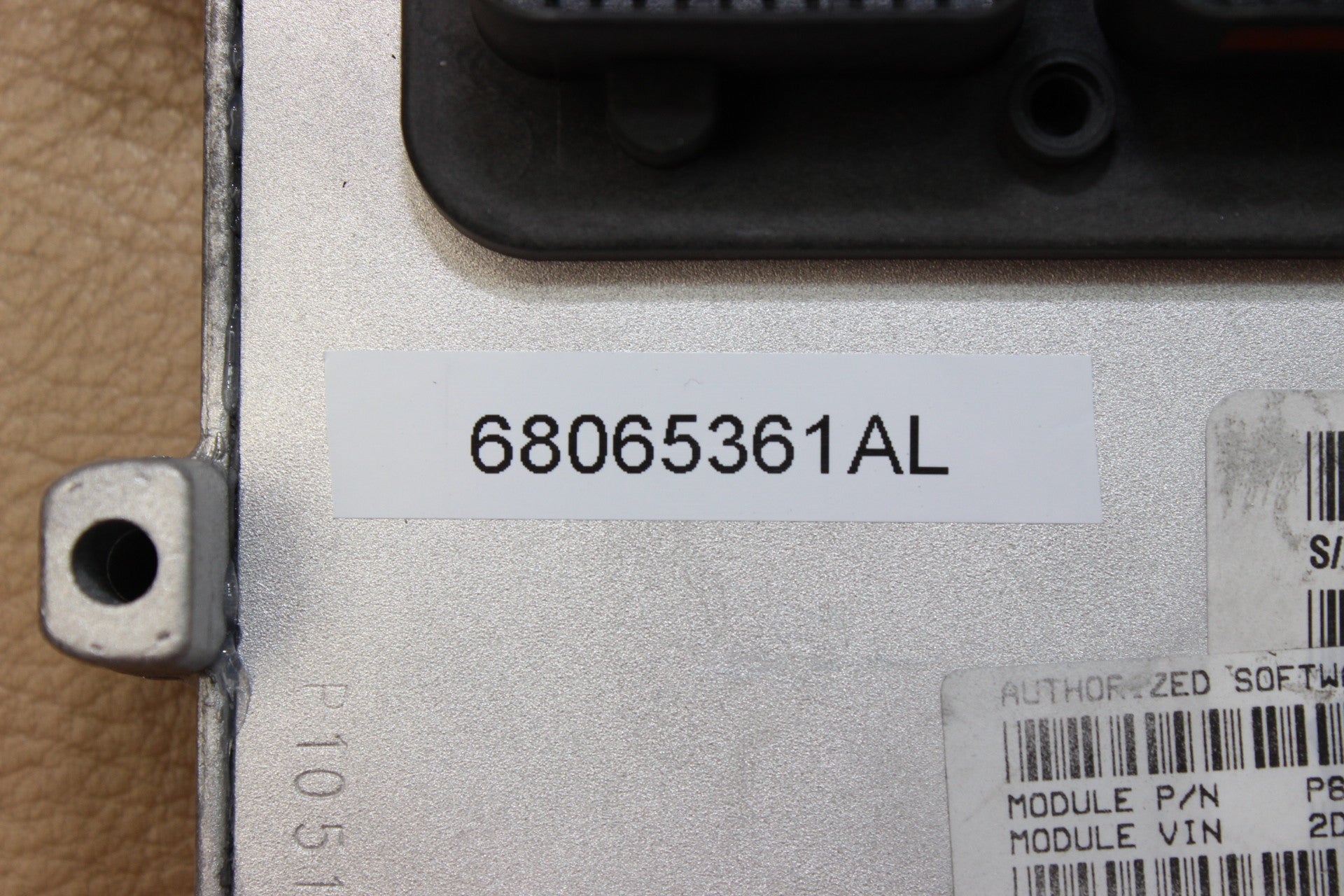

68065361AL
ECU has SKIM security and requires programming before installation.

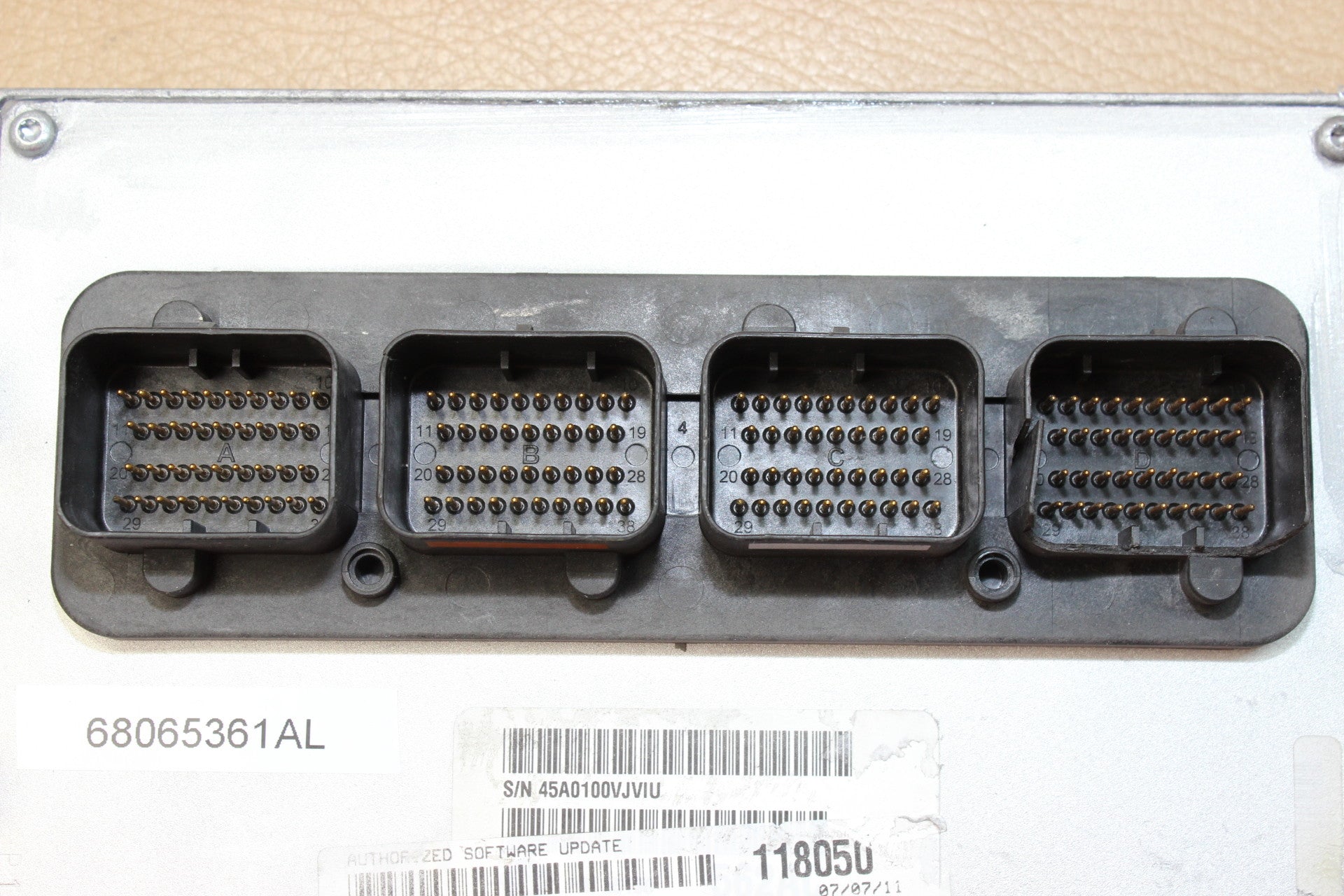

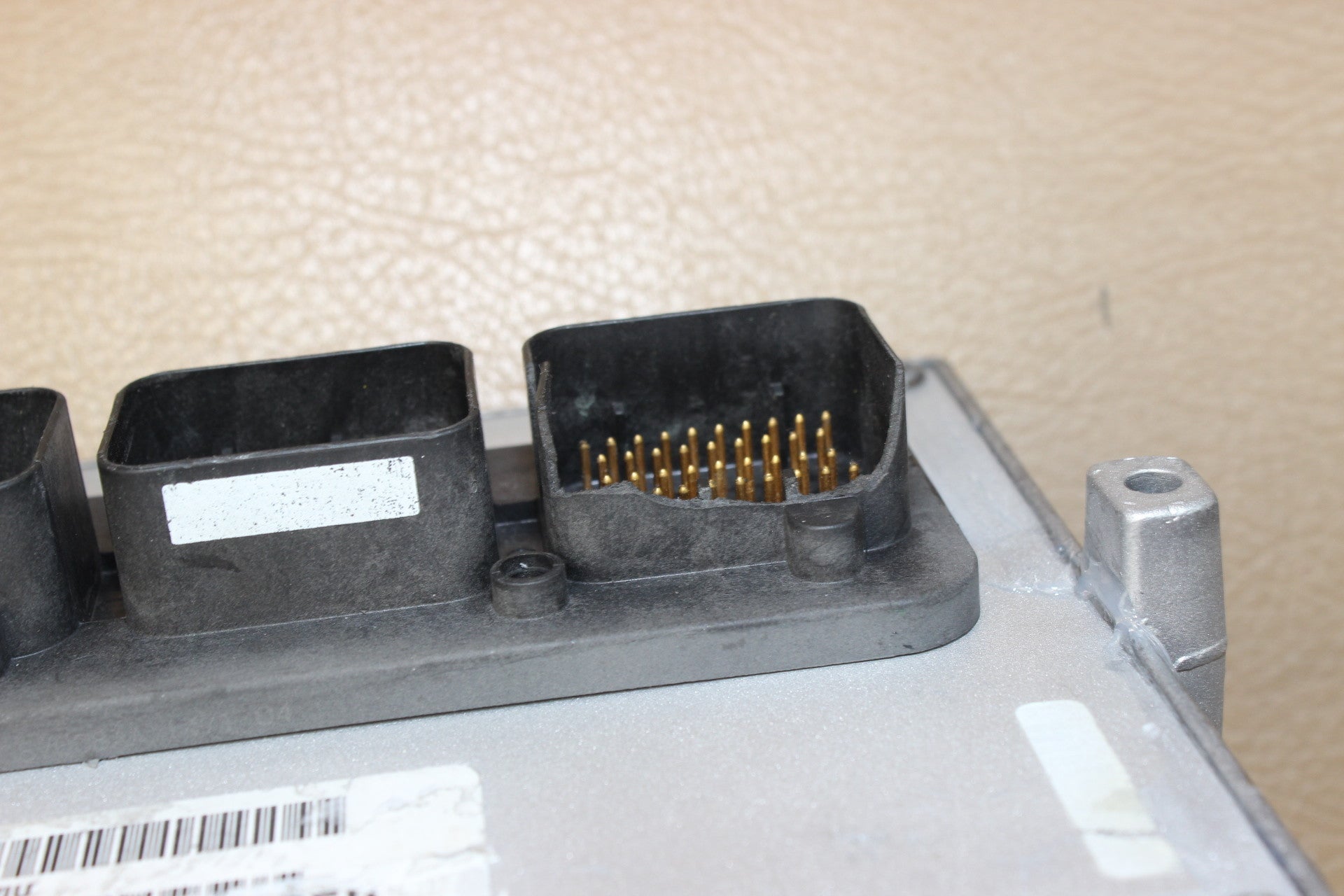

**NOTE: The connector plastic is chipped as pictured. The lock tabs are in place but you may want to put some dielectric grease in there to help keep the moisture out. Please do not purchase the unit unless you are comfortable with this.
Fitment/Interchange
This ecu will interchange or replace the following part numbers:
68065361AA
68065361AB
68065361AC
68065361AD
68065361AE
68065361AF
68065361AG
68065361AH
68065361AI
68065361AJ
68065361AK
68065361AL
68065361
Tech Notes
- ECU has been tested with our state of the art vehicle simulator which tests over 25 circuits of the ECU! Some of those are listed below:
- Reference Voltage Good!
- ECU powered up and has communication!
- ECU fuel pump/main relay test good!
- ECU alternator charging system tests good!
- ECU injectors/coils test good and much more!
Install Notes
- Disconnect the negative terminal of the battery. Make sure the battery connector is not touching the battery post.
- Disconnect and remove the module to be replaced.
- Install and connect the replacement module.
- Connect the negative terminal of the battery.
- See "Programming" below for additional install instructions.
Programming
For Plug and Play you must follow the below three steps:
Step 1: Match your part number series per above fitment guide
Step 2: Match your ecu security. Most NGC style ecu's have SKIM security and are not plug and play. (You generally will have grey ignition keys or chipped keys.)
Step 3: Program ecu to your VIN and mileage. Your local dealer or certified mechanic will be able to handle this.
Item Condition
- Mounting points are all open and intact
- Pins perfect, none are broken or bent
- The connector plastic is chipped as pictured. The lock tabs are in place but you may want to put some dielectric grease in there to help keep the moisture out. Please do not purchase the unit unless you are comfortable with this.
Warranty / Optional Core Return
This ECM comes with a 90 day warranty from the date of purchase. Please keep a copy of your purchase record which we will send with your item.
If you would like to return your core for a $25 partial refund let us know during checkout through the "notes to seller" and we will send a prepaid return label with your order. It's that simple. If your ECM is having the alternator charging issue, we won't be able to accept your unit for the core. Otherwise, once your original item comes in we will process your refund promptly.
